Slotted Grommet, Natural, Adh. PE, 3.7mm Max Panel, 30.5m L,PK1
MFG #GEE144F-A-C
$89.76 / E
EACH
EACH
Product Description:

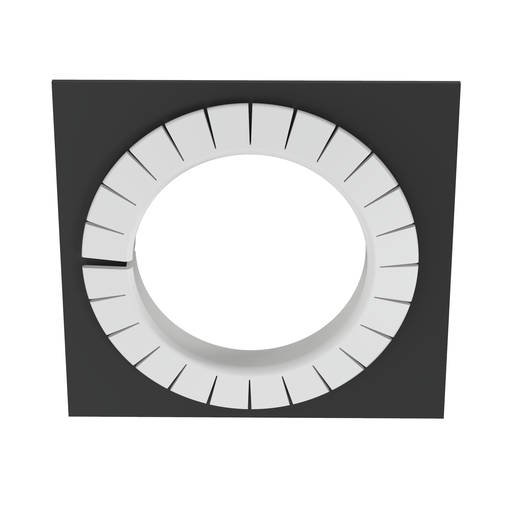

The GEE144F-A-C Polyethylene Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Slotted edging recommended for use on irregularly shaped and round panel holes. The material is highly flexible, while the adhesive lining ensures the product will stay in place. Packaged on a 100' (30.5m) reel for easy handling and dispensing. Polyethylene. Designed for 0.099"-0.144" (2.5mm-3.7mm) thick panels. Color Natural. 1 per package.
HESCO Part Number
PANGEE144FAC
UPC
074983627165
Manufacturer Part Number
GEE144F-A-C
Manufacturer
Panduit
Slotted Grommet, Natural, Adh. PE, 3.7mm Max Panel, 30.5m L,PK1
MFG #GEE144F-A-C
Product Description:
The GEE144F-A-C Polyethylene Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Slotted edging recommended for use on irregularly shaped and round panel holes. The material is highly flexible, while the adhesive lining ensures the product will stay in place. Packaged on a 100' (30.5m) reel for easy handling and dispensing. Polyethylene. Designed for 0.099"-0.144" (2.5mm-3.7mm) thick panels. Color Natural. 1 per package.
HESCO Part Number
PANGEE144FAC
UPC
074983627165
Manufacturer Part Number
GEE144F-A-C
Manufacturer
Panduit
$89.76 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
- No
Packaging Details
| UPC | : | 07498362716 |
| GTIN Package | : | 00074983627165 |
| Standard Package Volume Ft3 | : | 0.3169 |
| Standard Package Weight Pounds | : | 1.5500 |
| Std Package Height In | : | 3.05 |
| Std Package Height MM | : | 77.47 |
| Std Package Length In | : | 13.4 |
| Std Package Length MM | : | 340.36 |
| Std Package Width In | : | 13.4 |
| Std Package Width MM | : | 340.36 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983627165 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 144 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 223.2000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Compatible Panel Thickness (mm) | : | 3.7 |
| Material | : | Polyethylene |
| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Minimum Operating Temperature (°F) | : | -40 |
| Maximum Compatible Panel Thickness (In.) | : | 0.14 |
| Minimum Compatible Panel Thickness (In.) | : | 0.099 |
| Minimum Compatible Panel Thickness (mm) | : | 2.5 |
| Note | : | Designed for irregular shaped or round panel holes |
| Overall Height (mm) | : | 5.6 |
| Overall Width (In.) | : | 0.21 |
| Overall Length (ft.) | : | 100 |
| Resistance Properties | : | Abrasion-Resistant |
| Color | : | Natural |
| Minimum Operating Temperature (°C) | : | -40 |
| Overall Height (In.) | : | 0.22 |
| Maximum Operating Temperature (°F) | : | 122 |
| Overall Length (m) | : | 30.48 |
| Overall Width (mm) | : | 5.4 |
| Maximum Operating Temperature (°C) | : | 50 |
| Product Type | : | Slotted Grommet Edging |
