P1™ Heat Shrink Label
MFG #H000X034H1C
$82.15 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:

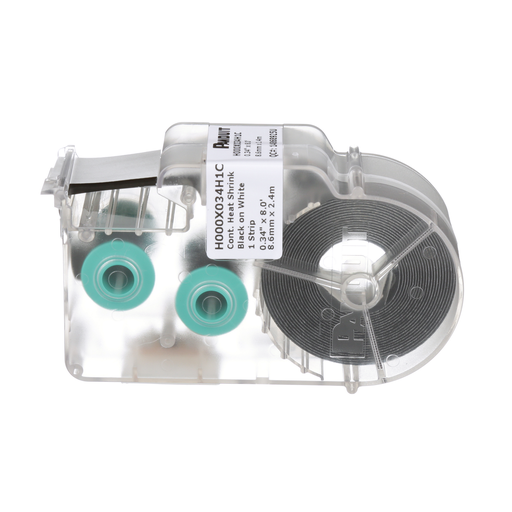

The H000X034H1C Military-Grade Polyolefin Continuous Heat-Shrink Label Cassette can be cut-to-length and contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining in the cassette. Compatible with Easy-Mark Plus™ Labeling Software. For use with LS8E and LS8EQ printers. Shrink ratio 3:1. 0.34" x 8' (8.6 mm x 2.4 m) Cable diameter 0.06" - 0.19" (1.5 mm - 4.8 mm) Color White. 1 cassette
HESCO Part Number
PANH000X034H1C
UPC
074983663699
Manufacturer Part Number
H000X034H1C
Manufacturer
Panduit
P1™ Heat Shrink Label
MFG #H000X034H1C
Product Description:
The H000X034H1C Military-Grade Polyolefin Continuous Heat-Shrink Label Cassette can be cut-to-length and contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining in the cassette. Compatible with Easy-Mark Plus™ Labeling Software. For use with LS8E and LS8EQ printers. Shrink ratio 3:1. 0.34" x 8' (8.6 mm x 2.4 m) Cable diameter 0.06" - 0.19" (1.5 mm - 4.8 mm) Color White. 1 cassette
HESCO Part Number
PANH000X034H1C
UPC
074983663699
Manufacturer Part Number
H000X034H1C
Manufacturer
Panduit
$82.15 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability.
Packaging Details
| UPC | : | 07498366369 |
| GTIN Package | : | 00074983663699 |
| Standard Package Volume Ft3 | : | 0.0931 |
| Standard Package Weight Pounds | : | 0.5400 |
| Std Package Height In | : | 2.05 |
| Std Package Height MM | : | 52.07 |
| Std Package Length In | : | 4.35 |
| Std Package Length MM | : | 110.49 |
| Std Package Width In | : | 2.85 |
| Std Package Width MM | : | 72.39 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983663694 |
| Standard Carton Volume Ft3 | : | 0.9309 |
| Standard Carton Weight Pounds | : | 5.4000 |
| Std Carton Height In | : | 5.85 |
| Std Carton Height MM | : | 148.59 |
| Std Carton Length In | : | 10.5 |
| Std Carton Length MM | : | 266.7 |
| Std Carton Width In | : | 6.05 |
| Std Carton Width MM | : | 153.67 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983663699 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 2,320 |
| Pallet Volume | : | 215.973472 |
| Pallet Weight | : | 1,252.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Label Height (mm) | : | 8.6 |
| Maximum Operating Temperature (°F) | : | 275 |
| Material | : | Polyolefin |
| Label Height (In.) | : | 0.34 |
| Roll Length (ft.) | : | 8 |
| Product Type | : | Heat Shrink Label |
| Minimum Cable Diameter (mm) | : | 1.5 |
| Maximum Operating Temperature (°C) | : | 135 |
| Overall Width (mm) | : | 8.6 |
| Minimum Operating Temperature (°F) | : | -67 |
| Maximum Cable Diameter (mm) | : | 4.8 |
| Color | : | White |
| Maximum Cable Diameter (In.) | : | 0.19 |
| Resistance Properties | : | Military Grade |
| Label Application | : | Cable & Wire Marking |
| Note | : | For use with LS8E and LS8EQ printers |
| Minimum Operating Temperature (°C) | : | -55 |
| Roll Length (m) | : | 2.44 |
| Minimum Cable Diameter (In.) | : | 0.06 |
| Overall Width (In.) | : | 0.34 |
| Sub Brand | : | P1™ |
| Compatible Wire Gauge | : | 18-12 AWG |
Videos 1
- No
- Standards Met: MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability.
Packaging Details
UPC : 07498366369 GTIN Package : 00074983663699 Standard Package Volume Ft3 : 0.0931 Standard Package Weight Pounds : 0.5400 Std Package Height In : 2.05 Std Package Height MM : 52.07 Std Package Length In : 4.35 Std Package Length MM : 110.49 Std Package Width In : 2.85 Std Package Width MM : 72.39 Std. Pkg. UOM : Piece UOM EA PK : EA Std. Pkg. Qty. : 1 GTIN Carton : 50074983663694 Standard Carton Volume Ft3 : 0.9309 Standard Carton Weight Pounds : 5.4000 Std Carton Height In : 5.85 Std Carton Height MM : 148.59 Std Carton Length In : 10.5 Std Carton Length MM : 266.7 Std Carton Width In : 6.05 Std Carton Width MM : 153.67 Std Ctn Qty : 10 Min. Order UOM : Piece EAN : 00074983663699 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 10.0000 Pallet Quantity : 2,320 Pallet Volume : 215.973472 Pallet Weight : 1,252.8000 RoHS Compliant : Compliant Specifications
Country of Origin : Costa Rica Any Reason Not to Sell : N Product Segment : IEI Label Height (mm) : 8.6 Maximum Operating Temperature (°F) : 275 Material : Polyolefin Label Height (In.) : 0.34 Roll Length (ft.) : 8 Product Type : Heat Shrink Label Minimum Cable Diameter (mm) : 1.5 Maximum Operating Temperature (°C) : 135 Overall Width (mm) : 8.6 Minimum Operating Temperature (°F) : -67 Maximum Cable Diameter (mm) : 4.8 Color : White Maximum Cable Diameter (In.) : 0.19 Resistance Properties : Military Grade Label Application : Cable & Wire Marking Note : For use with LS8E and LS8EQ printers Minimum Operating Temperature (°C) : -55 Roll Length (m) : 2.44 Minimum Cable Diameter (In.) : 0.06 Overall Width (In.) : 0.34 Sub Brand : P1™ Compatible Wire Gauge : 18-12 AWG - Product Bulletins
