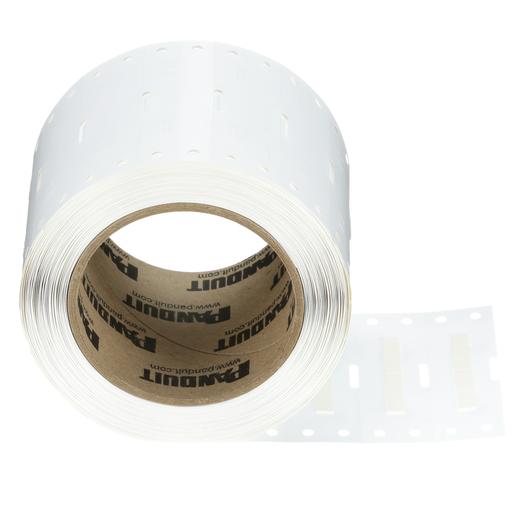

H075X025H1T Heatshrink, PO, White, Mil Grade, 1000 Lbls, TT, 0.25"x0.75"
MFG #H075X025H1T
$362.89 / E
EACH
EACH
Product Description:
The H075X025H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.75" x 0.25" (19 mm x 8.6 mm). Color White. 1000 labels per roll.
HESCO Part Number
PANH075X025H1T
UPC
074983518593
Manufacturer Part Number
H075X025H1T
Manufacturer
Panduit
H075X025H1T Heatshrink, PO, White, Mil Grade, 1000 Lbls, TT, 0.25"x0.75"
MFG #H075X025H1T
Product Description:
The H075X025H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.75" x 0.25" (19 mm x 8.6 mm). Color White. 1000 labels per roll.
HESCO Part Number
PANH075X025H1T
UPC
074983518593
Manufacturer Part Number
H075X025H1T
Manufacturer
Panduit
$362.89 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
Packaging Details
| UPC | : | 07498351859 |
| GTIN Package | : | 00074983518593 |
| Standard Package Volume Ft3 | : | 0.1204 |
| Standard Package Weight Pounds | : | 1.2000 |
| Std Package Height In | : | 6.45 |
| Std Package Height MM | : | 163.83 |
| Std Package Length In | : | 6.6 |
| Std Package Length MM | : | 167.64 |
| Std Package Width In | : | 5.2 |
| Std Package Width MM | : | 132.08 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983518593 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Color | : | White |
| Maximum Operating Temperature (°C) | : | 135 |
| Label Property | : | Flammability, Fluid Resistance, Harsh Environments, Military Grade |
| Diameter (In.) | : | 0.13 |
| Overall Height (In.) | : | 0.25 |
| Number of Labels | : | 1000 |
| Diameter (mm) | : | 3.3 |
| Overall Height (mm) | : | 6.4 |
| Resistance Properties | : | Military Grade |
| Product Type | : | Heat Shrink Label |
| Number of Sides | : | 1 |
| Overall Width (In.) | : | 0.75 |
| Number of Labels per Row | : | 2 |
| Overall Width (mm) | : | 19 |
| Material | : | Polyolefin |
| Minimum Operating Temperature (°C) | : | -55 |
| Printer Type | : | Thermal Transfer |
| Flammability Rating | : | VW-1 |
| Maximum Operating Temperature (°F) | : | 275 |
| Label Application | : | Cable & Wire Marking |
| Minimum Operating Temperature (°F) | : | -67 |
| Label Dimensions (In.) | : | 0.75W x 0.25H |
| Compatible Wire Gauge | : | 22-18 AWG |
Data Sheets
Data Sheets 1
Part Drawings
Part Drawings 1
Selection Guides
Selection Guides 1
Catalogs
Catalogs 1
Data Sheets 1Part Drawings
Part Drawings 1Selection Guides
Selection Guides 1Catalogs
Catalogs 1- Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
Packaging Details
UPC : 07498351859 GTIN Package : 00074983518593 Standard Package Volume Ft3 : 0.1204 Standard Package Weight Pounds : 1.2000 Std Package Height In : 6.45 Std Package Height MM : 163.83 Std Package Length In : 6.6 Std Package Length MM : 167.64 Std Package Width In : 5.2 Std Package Width MM : 132.08 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983518593 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Color : White Maximum Operating Temperature (°C) : 135 Label Property : Flammability, Fluid Resistance, Harsh Environments, Military Grade Diameter (In.) : 0.13 Overall Height (In.) : 0.25 Number of Labels : 1000 Diameter (mm) : 3.3 Overall Height (mm) : 6.4 Resistance Properties : Military Grade Product Type : Heat Shrink Label Number of Sides : 1 Overall Width (In.) : 0.75 Number of Labels per Row : 2 Overall Width (mm) : 19 Material : Polyolefin Minimum Operating Temperature (°C) : -55 Printer Type : Thermal Transfer Flammability Rating : VW-1 Maximum Operating Temperature (°F) : 275 Label Application : Cable & Wire Marking Minimum Operating Temperature (°F) : -67 Label Dimensions (In.) : 0.75W x 0.25H Compatible Wire Gauge : 22-18 AWG - Data SheetsData Sheets 1
