H2X3LG6 Hinged Cover Wide Slot Duct, Lt Gray, PVC, 2"x 3"
MFG #H2X3LG6
$11.57 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:

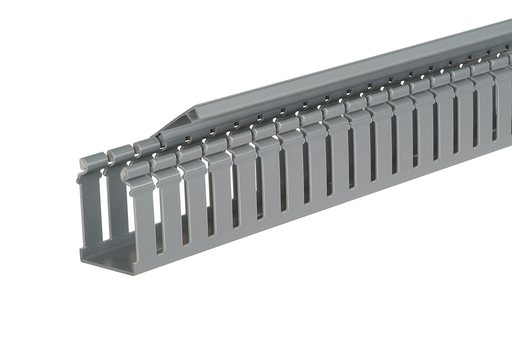

The H2X3LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-Free PVC. 3" x 2.17" (76.2mm x 55.1mm) and 6' (1.83m) long. Cover sold separately. Light Gray.
HESCO Part Number
PANH2X3LG6
UPC
074983138470
Manufacturer Part Number
H2X3LG6
Manufacturer
Panduit
H2X3LG6 Hinged Cover Wide Slot Duct, Lt Gray, PVC, 2"x 3"
MFG #H2X3LG6
Product Description:
The H2X3LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-Free PVC. 3" x 2.17" (76.2mm x 55.1mm) and 6' (1.83m) long. Cover sold separately. Light Gray.
HESCO Part Number
PANH2X3LG6
UPC
074983138470
Manufacturer Part Number
H2X3LG6
Manufacturer
Panduit
$11.57 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CSA Compliant, CE Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498313847 |
| GTIN Package | : | 00074983138470 |
| Standard Package Volume Ft3 | : | 0.2133 |
| Standard Package Weight Pounds | : | 2.7582 |
| Std Package Height In | : | 3 |
| Std Package Height MM | : | 76.2 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 2 |
| Std Package Width MM | : | 50.8 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983138475 |
| Standard Carton Volume Ft3 | : | 2.1327 |
| Standard Carton Weight Pounds | : | 27.5820 |
| Std Carton Height In | : | 3.6 |
| Std Carton Height MM | : | 91.44 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 13.3 |
| Std Carton Width MM | : | 337.82 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983138470 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 1,620 |
| Pallet Volume | : | 57.582000 |
| Pallet Weight | : | 744.7140 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (mm) | : | 77.7 |
| Overall Length (ft.) | : | 6 |
| Mount Method | : | Mounting Holes |
| Wiring Duct Type | : | H |
| Product Type | : | Base Wiring Duct |
| Sub Brand | : | Panduct® |
| Includes | : | Base Only |
| Overall Width (mm) | : | 55.1 |
| Overall Height (In.) | : | 3.06 |
| Material | : | PVC |
| Cover Part Number | : | HC2LG6 |
| Wiring Duct Style | : | Slotted Wall Wiring Duct |
| Flammability Rating | : | UL94V-0 |
| Slot Width (mm) | : | 7.9 |
| Color | : | Light Gray |
| Overall Length (m) | : | 1828.8 |
| Overall Width (In.) | : | 2.17 |
| Application | : | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Slot Width (In.) | : | 0.31 |
| Measurement System | : | Imperial |
| Duct Dimensions (In.) | : | 2.17W x 3.06H |
