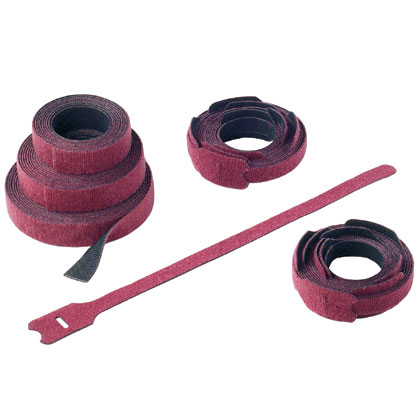

TAK-TY® HOOK AND LOOP CABLE TIE, MAROON
MFG #HLTP3I-X12
$3.55 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Hook & Loop Cable Tie, UL Listed, Loop Style, 12.0, Intermediate Cross Section. Maroon.
HESCO Part Number
PANHLTP3IX12
UPC
074983904198
Manufacturer Part Number
HLTP3I-X12
Manufacturer
Panduit
TAK-TY® HOOK AND LOOP CABLE TIE, MAROON
MFG #HLTP3I-X12
Product Description:
Hook & Loop Cable Tie, UL Listed, Loop Style, 12.0, Intermediate Cross Section. Maroon.
HESCO Part Number
PANHLTP3IX12
UPC
074983904198
Manufacturer Part Number
HLTP3I-X12
Manufacturer
Panduit
$3.55 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: RoHS Compliant
- No
Specifications
| Country of Origin | : | United States, Taiwan |
| Any Reason Not to Sell | : | N |
| Product Segment | : | DEFAULT |
| Environment | : | Indoor |
| Maximum Operating Temperature (°F) | : | 122 |
| Body Width (mm) | : | 12.7 |
| Maximum Operating Temperature (°C) | : | 50 |
| Material | : | Nylon |
| Maximum Bundle Diameter (In.) | : | 3.18 |
| Minimum Operating Temperature (°C) | : | -18 |
| Application | : | Bundle High Performance Communication Cabling in Air Handling Spaces |
| Minimum Loop Tensile Strength (N) | : | 178 |
| Body Thickness (In.) | : | 0.1 |
| Minimum Installation Temperature (°C) | : | -17 |
| Overall Length (mm) | : | 305 |
| Body Width (In.) | : | 0.5 |
| For Use With | : | Network Cables |
| Minimum Loop Tensile Strength (lb) | : | 40 |
| Product Type | : | Loop Tie |
| Maximum Bundle Diameter (mm) | : | 81 |
| Color | : | Maroon |
| Overall Length (In.) | : | 12 |
| Body Thickness (mm) | : | 2.5 |
| Minimum Operating Temperature (°F) | : | 0 |
| Resistance Properties | : | Flame-Resistant |
| Sub Brand | : | Tak-Ty® |
| Minimum Installation Temperature (°F) | : | 1 |
Packaging Details | ||
| UPC | : | 07498390419 |
| GTIN Package | : | 00074983904198 |
| Standard Package Volume Ft3 | : | 0.0150 |
| Standard Package Weight Pounds | : | 0.0809 |
| Std Package Height In | : | 1.15 |
| Std Package Height MM | : | 29.21 |
| Std Package Length In | : | 5.95 |
| Std Package Length MM | : | 151.13 |
| Std Package Width In | : | 5.2 |
| Std Package Width MM | : | 132.08 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| GTIN Carton | : | 50074983904193 |
| Standard Carton Volume Ft3 | : | 0.1505 |
| Standard Carton Weight Pounds | : | 0.8090 |
| Std Carton Height In | : | 3.2 |
| Std Carton Height MM | : | 81.28 |
| Std Carton Length In | : | 14.1 |
| Std Carton Length MM | : | 358.14 |
| Std Carton Width In | : | 8.8 |
| Std Carton Width MM | : | 223.52 |
| Std Ctn Qty | : | 100 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983904198 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: RoHS Compliant
- No
Specifications
Country of Origin : United States, Taiwan Any Reason Not to Sell : N Product Segment : DEFAULT Environment : Indoor Maximum Operating Temperature (°F) : 122 Body Width (mm) : 12.7 Maximum Operating Temperature (°C) : 50 Material : Nylon Maximum Bundle Diameter (In.) : 3.18 Minimum Operating Temperature (°C) : -18 Application : Bundle High Performance Communication Cabling in Air Handling Spaces Minimum Loop Tensile Strength (N) : 178 Body Thickness (In.) : 0.1 Minimum Installation Temperature (°C) : -17 Overall Length (mm) : 305 Body Width (In.) : 0.5 For Use With : Network Cables Minimum Loop Tensile Strength (lb) : 40 Product Type : Loop Tie Maximum Bundle Diameter (mm) : 81 Color : Maroon Overall Length (In.) : 12 Body Thickness (mm) : 2.5 Minimum Operating Temperature (°F) : 0 Resistance Properties : Flame-Resistant Sub Brand : Tak-Ty® Minimum Installation Temperature (°F) : 1 Packaging Details
UPC : 07498390419 GTIN Package : 00074983904198 Standard Package Volume Ft3 : 0.0150 Standard Package Weight Pounds : 0.0809 Std Package Height In : 1.15 Std Package Height MM : 29.21 Std Package Length In : 5.95 Std Package Length MM : 151.13 Std Package Width In : 5.2 Std Package Width MM : 132.08 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 GTIN Carton : 50074983904193 Standard Carton Volume Ft3 : 0.1505 Standard Carton Weight Pounds : 0.8090 Std Carton Height In : 3.2 Std Carton Height MM : 81.28 Std Carton Length In : 14.1 Std Carton Length MM : 358.14 Std Carton Width In : 8.8 Std Carton Width MM : 223.52 Std Ctn Qty : 100 Min. Order UOM : Piece EAN : 00074983904198 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Product Bulletins
