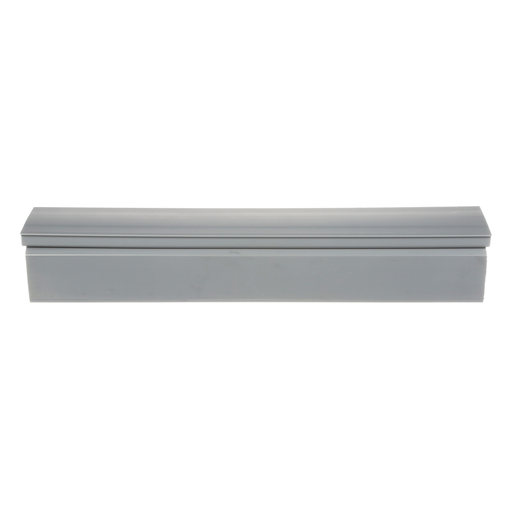

Panduct® HS1.5X2LG6NM Base Wiring Duct
MFG #HS1.5X2LG6NM
$8.60 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
Product Description:
Solid hinged duct, 1.5 W x 2 H, 6' length, PVC, light gray, no mounting holes.
HESCO Part Number
PANHS15X2LG6NM
UPC
074983462452
Manufacturer Part Number
HS1.5X2LG6NM
Manufacturer
Panduit
Panduct® HS1.5X2LG6NM Base Wiring Duct
MFG #HS1.5X2LG6NM
Product Description:
Solid hinged duct, 1.5 W x 2 H, 6' length, PVC, light gray, no mounting holes.
HESCO Part Number
PANHS15X2LG6NM
UPC
074983462452
Manufacturer Part Number
HS1.5X2LG6NM
Manufacturer
Panduit
$8.60 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CSA Compliant, CE Compliant, BABA Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (In.) | : | 175 |
| Overall Height (mm) | : | 50.3 |
| Cover Part Number | : | HC1.5LG6 |
| Color | : | Light Gray |
| Flammability Rating | : | UL94 V-0 |
| Material | : | PVC |
| Application | : | Hinged Cover Solid Wall Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Overall Width (mm) | : | 44.5 |
| Overall Height (In.) | : | 1.98 |
| Overall Length (m) | : | 1.83 |
| Product Type | : | Base Wiring Duct |
| Wiring Duct Style | : | Solid Wall Wiring Duct |
| Includes | : | Base Only |
| Wiring Duct Type | : | HS |
| Overall Length (ft.) | : | 6 |
| Measurement System | : | Imperial |
| Sub Brand | : | Panduct® |
| Mount Method | : | No Mounting Holes |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 175W x 1.98H |
Packaging Details | ||
| UPC | : | 07498346245 |
| GTIN Package | : | 00074983462452 |
| Standard Package Volume Ft3 | : | 0.1055 |
| Standard Package Weight Pounds | : | 2.0700 |
| Std Package Height In | : | 2 |
| Std Package Height MM | : | 50.8 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 1.5 |
| Std Package Width MM | : | 38.1 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983462457 |
| Standard Carton Volume Ft3 | : | 2.1102 |
| Standard Carton Weight Pounds | : | 41.4000 |
| Std Carton Height In | : | 4.5 |
| Std Carton Height MM | : | 114.3 |
| Std Carton Length In | : | 73 |
| Std Carton Length MM | : | 1854.2 |
| Std Carton Width In | : | 11.1 |
| Std Carton Width MM | : | 281.94 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983462452 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 2,520 |
| Pallet Volume | : | 44.313281 |
| Pallet Weight | : | 869.4000 |
| RoHS Compliant | : | Compliant |
