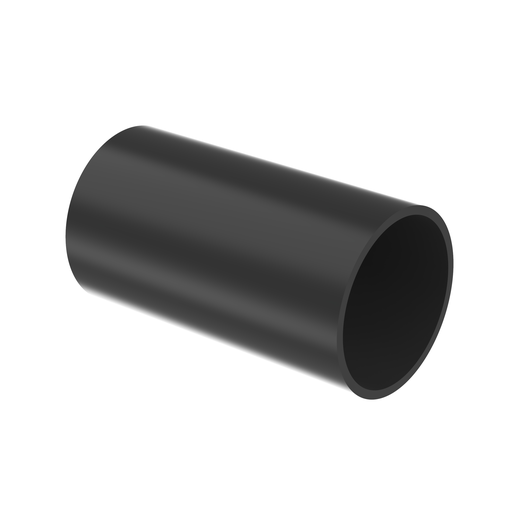

Wet-Shrink™ HST3.0-48-2 Heatshrink, Black, Adh. Lined PO, 4' L, 3" to 1" ID, PK2
MFG #HST3.0-48-2
$108.45 / E
(Must order in increments of 2/E)
(Must order in increments of 2/E)
Product Description:
The HST3.0-48-2 Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90°C continuous use. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 3" (76.2 mm) dia. 48" (1219.2 mm) length. Color Black.F894 2 per package.
HESCO Part Number
PANHST30482
UPC
074983616954
Manufacturer Part Number
HST3.0-48-2
Manufacturer
Panduit
Wet-Shrink™ HST3.0-48-2 Heatshrink, Black, Adh. Lined PO, 4' L, 3" to 1" ID, PK2
MFG #HST3.0-48-2
Product Description:
The HST3.0-48-2 Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90°C continuous use. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 3" (76.2 mm) dia. 48" (1219.2 mm) length. Color Black.F894 2 per package.
HESCO Part Number
PANHST30482
UPC
074983616954
Manufacturer Part Number
HST3.0-48-2
Manufacturer
Panduit
$108.45 / E
(Must order in increments of 2/E)
(Must order in increments of 2/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AS23053
- No
Packaging Details
| UPC | : | 07498361695 |
| GTIN Package | : | 00074983616954 |
| Standard Package Volume Ft3 | : | 0.7973 |
| Standard Package Weight Pounds | : | 4.1720 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 54 |
| Std Package Length MM | : | 1371.6 |
| Std Package Width In | : | 10 |
| Std Package Width MM | : | 254 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2 |
| GTIN Carton | : | 50074983616959 |
| Standard Carton Volume Ft3 | : | 3.1893 |
| Standard Carton Weight Pounds | : | 16.6880 |
| Std Carton Height In | : | 10.4 |
| Std Carton Height MM | : | 264.16 |
| Std Carton Length In | : | 50.1 |
| Std Carton Length MM | : | 1272.54 |
| Std Carton Width In | : | 10.4 |
| Std Carton Width MM | : | 264.16 |
| Std Ctn Qty | : | 8 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983616954 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2.0000 |
| Pallet Quantity | : | 128 |
| Pallet Volume | : | 51.028355 |
| Pallet Weight | : | 267.0080 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Canada |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Nominal Diameter (In.) | : | 3 |
| Maximum Operating Temperature (°F) | : | 230 |
| Overall Length (m) | : | 1.22 |
| Minimum Expanded Inside Diameter (mm) | : | 76.2 |
| Nominal Recovered Wall Thickness (In.) | : | 0.16 |
| Overall Length (ft.) | : | 4 |
| Color | : | Black |
| Maximum Recovered Inside Diameter (In.) | : | 1 |
| Maximum Recovered Inside Diameter (mm) | : | 25.4 |
| Resistance Properties | : | Flame-Retardant |
| Minimum Expanded Inside Diameter (In.) | : | 3 |
| Overall Length (In.) | : | 48 |
| Minimum Operating Temperature (°F) | : | -67 |
| Material | : | Cross-Linked Polyolefin |
| Shrink Temperature (°C) | : | 120 |
| Product Type | : | Heat Shrink Tubing |
| Maximum Operating Temperature (°C) | : | 110 |
| Overall Length (mm) | : | 1219.2 |
| Application | : | For Wet Locations; Insulating and protecting wires and cables; Suitable for direct burial |
| Shrink Ratio | : | 3:1 |
| Minimum Operating Temperature (°C) | : | -55 |
| Nominal Diameter (mm) | : | 76.2 |
| Shrink Temperature (°F) | : | 248 |
| Nominal Recovered Wall Thickness (mm) | : | 4.1 |
| Adhesive Lined | : | Yes |
| Sub Brand | : | Wet-Shrink™ |
| Finish/Coating | : | Adhesive-Lined |
