Dry-Shrink™ HSTT100-YK1 Heat Shrink
MFG #HSTT100-YK1
$17.02 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:

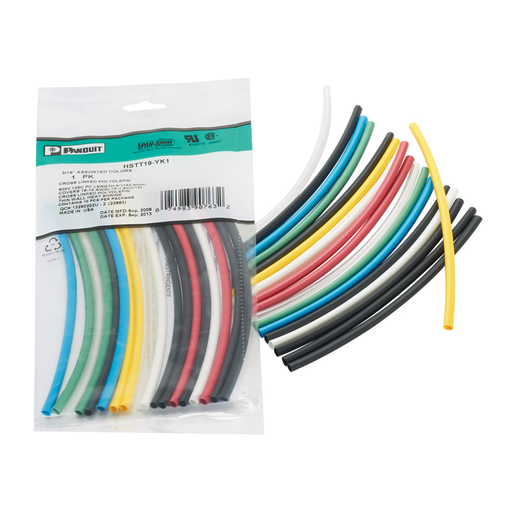

Thin wall heat shrink in 6" pieces, multi-color, single diameter, 1" (25.4mm) diameter, cross-linked polyolefin.
HESCO Part Number
PANHSTT100YK1
UPC
074983907687
Manufacturer Part Number
HSTT100-YK1
Manufacturer
Panduit
Dry-Shrink™ HSTT100-YK1 Heat Shrink
MFG #HSTT100-YK1
Product Description:
Thin wall heat shrink in 6" pieces, multi-color, single diameter, 1" (25.4mm) diameter, cross-linked polyolefin.
HESCO Part Number
PANHSTT100YK1
UPC
074983907687
Manufacturer Part Number
HSTT100-YK1
Manufacturer
Panduit
$17.02 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized, CSA Approved, MIL SPEC
Packaging Details
| UPC | : | 07498390768 |
| GTIN Package | : | 00074983907687 |
| Standard Package Volume Ft3 | : | 0.0233 |
| Standard Package Weight Pounds | : | 0.2050 |
| Std Package Height In | : | 1.2 |
| Std Package Height MM | : | 30.48 |
| Std Package Length In | : | 7.2 |
| Std Package Length MM | : | 182.88 |
| Std Package Width In | : | 5 |
| Std Package Width MM | : | 127 |
| Std. Pkg. UOM | : | Package |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983907682 |
| Standard Carton Volume Ft3 | : | 0.2331 |
| Standard Carton Weight Pounds | : | 2.0500 |
| Std Carton Height In | : | 5.5 |
| Std Carton Height MM | : | 139.7 |
| Std Carton Length In | : | 8.6 |
| Std Carton Length MM | : | 218.44 |
| Std Carton Width In | : | 8.1 |
| Std Carton Width MM | : | 205.74 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Package |
| EAN | : | 00074983907687 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 2,000 |
| Pallet Volume | : | 46.610277 |
| Pallet Weight | : | 410.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | South Korea, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°F) | : | 275 |
| Minimum Expanded Inside Diameter (mm) | : | 25.4 |
| Maximum Operating Temperature (°C) | : | 135 |
| Shrink Ratio | : | 2:1 |
| Shrink Temperature (°F) | : | 194 |
| Minimum Operating Temperature (°F) | : | -67 |
| Minimum Expanded Inside Diameter (In.) | : | 1 |
| Overall Length (m) | : | 0.15 |
| Sub Brand | : | Dry-Shrink™ |
| Nominal Recovered Wall Thickness (mm) | : | 0.9 |
| Resistance Properties | : | Flame-Retardant |
| Overall Length (ft.) | : | 0.5 |
| Shrink Temperature (°C) | : | 90 |
| Material | : | Cross-Linked Polyolefin |
| Overall Length (In.) | : | 6 |
| Minimum Operating Temperature (°C) | : | -55 |
| Maximum Recovered Inside Diameter (mm) | : | 12.7 |
| Application | : | For Dry Locations |
| Nominal Recovered Wall Thickness (In.) | : | 0.035 |
| Overall Length (mm) | : | 152.4 |
| Adhesive Lined | : | No |
| Maximum Recovered Inside Diameter (In.) | : | 0.5 |
| Nominal Diameter (In.) | : | 1 |
| Color | : | Various |
| Nominal Diameter (mm) | : | 25.4 |
| Product Type | : | Heat Shrink Tubing |
