Dry-Shrink™ HSTT50-CC Heatshrink, Clear, PO, 100' L, 0.5" to 0.25" ID, PK1
MFG #HSTT50-CC
$162.83 / E
EACH
EACH
Product Description:

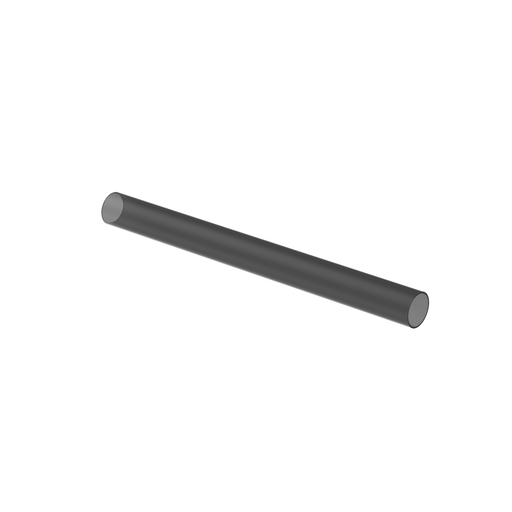

The HSTT50-CC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Cross-linked polyolefin. 0.50” Diameter x 100’ Long (12.7 mm x 30.5 m). Color Clear. 1 roll.
HESCO Part Number
PANHSTT50CC
UPC
074983747207
Manufacturer Part Number
HSTT50-CC
Manufacturer
Panduit
Dry-Shrink™ HSTT50-CC Heatshrink, Clear, PO, 100' L, 0.5" to 0.25" ID, PK1
MFG #HSTT50-CC
Product Description:
The HSTT50-CC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Cross-linked polyolefin. 0.50” Diameter x 100’ Long (12.7 mm x 30.5 m). Color Clear. 1 roll.
HESCO Part Number
PANHSTT50CC
UPC
074983747207
Manufacturer Part Number
HSTT50-CC
Manufacturer
Panduit
$162.83 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: Mil Spec: AMS-DTL-23053/5 Class 2
Packaging Details
| UPC | : | 07498374720 |
| GTIN Package | : | 00074983747207 |
| Standard Package Volume Ft3 | : | 0.4231 |
| Standard Package Weight Pounds | : | 1.8010 |
| Std Package Height In | : | 3.8 |
| Std Package Height MM | : | 96.52 |
| Std Package Length In | : | 13.6 |
| Std Package Length MM | : | 345.44 |
| Std Package Width In | : | 13.5 |
| Std Package Width MM | : | 342.9 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983747202 |
| Standard Carton Volume Ft3 | : | 4.2311 |
| Standard Carton Weight Pounds | : | 18.0100 |
| Std Carton Height In | : | 18.25 |
| Std Carton Height MM | : | 463.55 |
| Std Carton Length In | : | 27.85 |
| Std Carton Length MM | : | 707.39 |
| Std Carton Width In | : | 14.65 |
| Std Carton Width MM | : | 372.11 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983747207 |
| REACH Status | : | N |
| ARRA Compliant | : | N |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 80 |
| Pallet Volume | : | 33.848424 |
| Pallet Weight | : | 144.0800 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | China, South Korea |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Adhesive Lined | : | No |
| Maximum Operating Temperature (°C) | : | 135 |
| Nominal Recovered Wall Thickness (In.) | : | 0.025 |
| Minimum Operating Temperature (°F) | : | -67 |
| Color | : | Clear |
| Maximum Recovered Inside Diameter (mm) | : | 6.4 |
| Minimum Expanded Inside Diameter (In.) | : | 0.5 |
| Shrink Ratio | : | 2:1 |
| Overall Length (ft.) | : | 100 |
| Nominal Diameter (In.) | : | 0.5 |
| Sub Brand | : | Dry-Shrink™ |
| Nominal Diameter (mm) | : | 12.7 |
| Shrink Temperature (°F) | : | 194 |
| Application | : | For Dry Locations; Insulating and protecting wires and cables |
| Minimum Expanded Inside Diameter (mm) | : | 12.7 |
| Overall Length (mm) | : | 30500 |
| Shrink Temperature (°C) | : | 90 |
| Product Type | : | Heat Shrink Tubing |
| Maximum Recovered Inside Diameter (In.) | : | 0.25 |
| Overall Length (m) | : | 30.48 |
| Minimum Operating Temperature (°C) | : | -55 |
| Maximum Operating Temperature (°F) | : | 275 |
| Overall Length (In.) | : | 1200 |
| Material | : | Cross-Linked Polyolefin |
| Nominal Recovered Wall Thickness (mm) | : | 0.6 |
