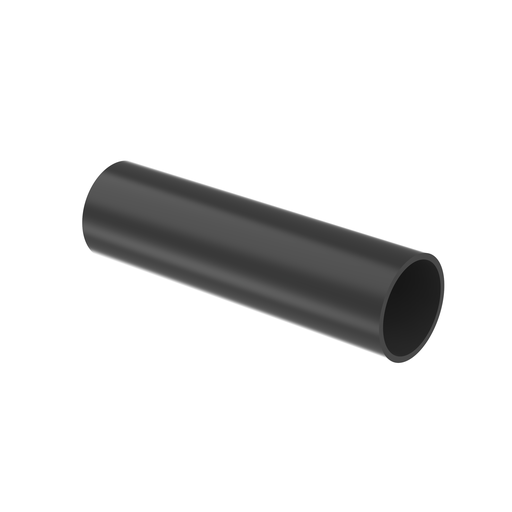

Damp-Shrink™ HSTTA150-48-Q Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5" to .51" ID
MFG #HSTTA150-48-Q
$58.52 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:
The HSTTA150-48-Q Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 1.5" (38.1 mm) diameter, 4' (1.2 m) length. Color Black. 25 per package
HESCO Part Number
PANHSTTA15048Q
UPC
074983784790
Manufacturer Part Number
HSTTA150-48-Q
Manufacturer
Panduit
Damp-Shrink™ HSTTA150-48-Q Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5" to .51" ID
MFG #HSTTA150-48-Q
Product Description:
The HSTTA150-48-Q Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 1.5" (38.1 mm) diameter, 4' (1.2 m) length. Color Black. 25 per package
HESCO Part Number
PANHSTTA15048Q
UPC
074983784790
Manufacturer Part Number
HSTTA150-48-Q
Manufacturer
Panduit
$58.52 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
Specifications
| Country of Origin | : | South Korea |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Shrink Temperature (°C) | : | 120 |
| Minimum Expanded Inside Diameter (In.) | : | 1.5 |
| Nominal Recovered Wall Thickness (mm) | : | 2.5 |
| Minimum Operating Temperature (°C) | : | -55 |
| Nominal Diameter (mm) | : | 38.1 |
| Overall Length (m) | : | 1.22 |
| Maximum Operating Temperature (°F) | : | 230 |
| Overall Length (In.) | : | 48 |
| Shrink Ratio | : | 3:1 |
| Overall Length (mm) | : | 1219.2 |
| Product Type | : | Heat Shrink Tubing |
| Adhesive Lined | : | Yes |
| Minimum Operating Temperature (°F) | : | -67 |
| Application | : | For Damp Locations; Insulating and protecting wires and cables |
| Nominal Diameter (In.) | : | 1.5 |
| Resistance Properties | : | Flame-Retardant |
| Maximum Operating Temperature (°C) | : | 110 |
| Maximum Recovered Inside Diameter (In.) | : | 0.51 |
| Shrink Temperature (°F) | : | 248 |
| Minimum Expanded Inside Diameter (mm) | : | 38.1 |
| Nominal Recovered Wall Thickness (In.) | : | 0.1 |
| Color | : | Black |
| Material | : | Cross-Linked Polyolefin |
| Overall Length (ft.) | : | 4 |
| Sub Brand | : | Damp-Shrink™ |
| Maximum Recovered Inside Diameter (mm) | : | 12.9 |
| Finish/Coating | : | Adhesive-Lined |
Packaging Details | ||
| UPC | : | 07498378479 |
| GTIN Package | : | 00074983784790 |
| Standard Package Volume Ft3 | : | 3.1216 |
| Standard Package Weight Pounds | : | 11.0000 |
| Std Package Height In | : | 10.4 |
| Std Package Height MM | : | 264.16 |
| Std Package Length In | : | 50.1 |
| Std Package Length MM | : | 1272.54 |
| Std Package Width In | : | 10.4 |
| Std Package Width MM | : | 264.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983784790 |
| REACH Status | : | N |
| ARRA Compliant | : | N |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 25.0000 |
| Pallet Quantity | : | 500 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 220.0000 |
| RoHS Compliant | : | Compliant |
