Dry-Shrink™ HSTTT19-48-Q Heat Shrink
MFG #HSTTT19-48-Q
$17.18 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:

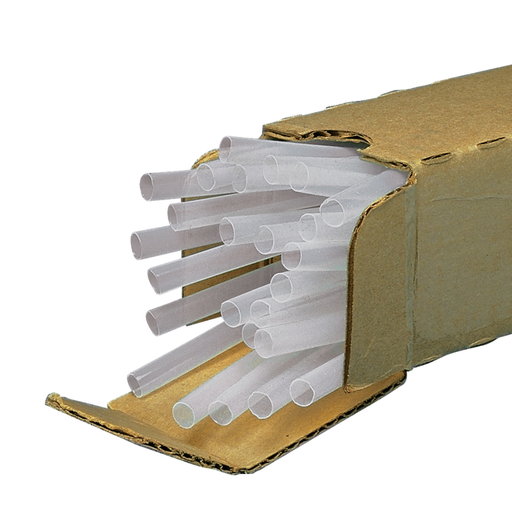

Thin wall TFE heat shrink, 10 AWG (4.9mm) diameter, polytetrafluoroethylene (TFE), clear, 25 pc. package quantity.
HESCO Part Number
PANHSTTT1948Q
UPC
074983374311
Manufacturer Part Number
HSTTT19-48-Q
Manufacturer
Panduit
Dry-Shrink™ HSTTT19-48-Q Heat Shrink
MFG #HSTTT19-48-Q
Product Description:
Thin wall TFE heat shrink, 10 AWG (4.9mm) diameter, polytetrafluoroethylene (TFE), clear, 25 pc. package quantity.
HESCO Part Number
PANHSTTT1948Q
UPC
074983374311
Manufacturer Part Number
HSTTT19-48-Q
Manufacturer
Panduit
$17.18 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: MIL SPEC
Packaging Details
| UPC | : | 07498337431 |
| GTIN Package | : | 00074983374311 |
| Standard Package Volume Ft3 | : | 0.1733 |
| Standard Package Weight Pounds | : | 0.6200 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 49.4 |
| Std Package Length MM | : | 1254.76 |
| Std Package Width In | : | 2.6 |
| Std Package Width MM | : | 66.04 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983374311 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 25.0000 |
| Pallet Quantity | : | 8,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 198.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Material | : | PTFE |
| Minimum Expanded Inside Diameter (In.) | : | 0.19 |
| Overall Length (mm) | : | 1219 |
| Nominal Diameter (In.) | : | 0.191 |
| Maximum Recovered Inside Diameter (mm) | : | 2.8 |
| Application | : | For Dry Locations |
| Minimum Expanded Inside Diameter (mm) | : | 4.9 |
| Sub Brand | : | Dry-Shrink™ |
| Maximum Recovered Inside Diameter (In.) | : | 0.112 |
| Nominal Recovered Wall Thickness (mm) | : | 0.3 |
| Maximum Operating Temperature (°C) | : | 250 |
| Adhesive Lined | : | No |
| Minimum Operating Temperature (°C) | : | -67 |
| Maximum Operating Temperature (°F) | : | 482 |
| Shrink Ratio | : | 2:1 |
| Shrink Temperature (°F) | : | 644 |
| Shrink Temperature (°C) | : | 340 |
| Overall Length (ft.) | : | 4 |
| Nominal Diameter (mm) | : | 4.9 |
| Minimum Operating Temperature (°F) | : | -88 |
| Overall Length (In.) | : | 48 |
| Color | : | Milky Clear |
| Overall Length (m) | : | 1.22 |
| Product Type | : | Heat Shrink Tubing |
| Nominal Recovered Wall Thickness (In.) | : | 0.012 |
