Dry-Shrink™ HSTTV50-C Heat Shrink
MFG #HSTTV50-C
$175.73 / E
EACH
EACH
Product Description:

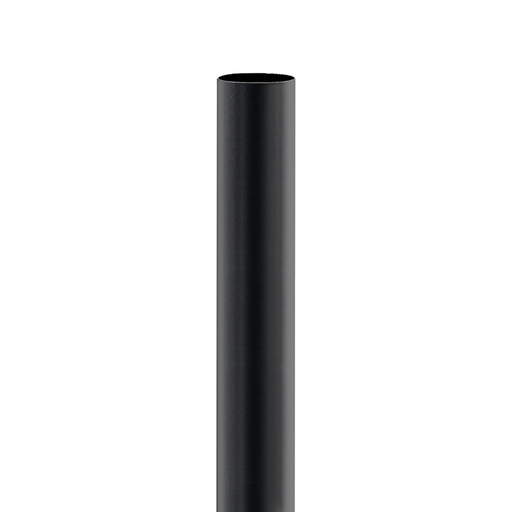

Thin wall VW-1 heat shrink on 100 foot reel, .50" (12.7mm) diameter, black cross-linked polyolefin.
HESCO Part Number
PANHSTTV50C
UPC
074983747283
Manufacturer Part Number
HSTTV50-C
Manufacturer
Panduit
Dry-Shrink™ HSTTV50-C Heat Shrink
MFG #HSTTV50-C
Product Description:
Thin wall VW-1 heat shrink on 100 foot reel, .50" (12.7mm) diameter, black cross-linked polyolefin.
HESCO Part Number
PANHSTTV50C
UPC
074983747283
Manufacturer Part Number
HSTTV50-C
Manufacturer
Panduit
$175.73 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized, CSA Approved, MIL SPEC
Packaging Details
| UPC | : | 07498374728 |
| GTIN Package | : | 00074983747283 |
| Standard Package Volume Ft3 | : | 0.4230 |
| Standard Package Weight Pounds | : | 0.9900 |
| Std Package Height In | : | 17.8 |
| Std Package Height MM | : | 452.12 |
| Std Package Length In | : | 27.8 |
| Std Package Length MM | : | 706.12 |
| Std Package Width In | : | 14.3 |
| Std Package Width MM | : | 363.22 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983747288 |
| Standard Carton Volume Ft3 | : | 4.2297 |
| Standard Carton Weight Pounds | : | 9.9000 |
| Std Carton Height In | : | 18.2 |
| Std Carton Height MM | : | 462.28 |
| Std Carton Length In | : | 27.9 |
| Std Carton Length MM | : | 708.66 |
| Std Carton Width In | : | 14.4 |
| Std Carton Width MM | : | 365.76 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983747283 |
| REACH Status | : | N |
| ARRA Compliant | : | N |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 80 |
| Pallet Volume | : | 33.837857 |
| Pallet Weight | : | 79.2000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | China, United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Recovered Inside Diameter (mm) | : | 6.4 |
| Maximum Recovered Inside Diameter (In.) | : | 0.25 |
| Shrink Ratio | : | 2:1 |
| Nominal Diameter (In.) | : | 0.5 |
| Shrink Temperature (°C) | : | 90 |
| Minimum Operating Temperature (°F) | : | -67 |
| Nominal Recovered Wall Thickness (mm) | : | 0.6 |
| Maximum Operating Temperature (°C) | : | 135 |
| Overall Length (ft.) | : | 100 |
| Color | : | Black |
| Overall Length (In.) | : | 1200 |
| Application | : | For Dry Locations |
| Sub Brand | : | Dry-Shrink™ |
| Shrink Temperature (°F) | : | 194 |
| Nominal Diameter (mm) | : | 12.7 |
| Minimum Expanded Inside Diameter (mm) | : | 12.7 |
| Resistance Properties | : | Flame-Retardant |
| Adhesive Lined | : | No |
| Minimum Expanded Inside Diameter (In.) | : | 0.5 |
| Product Type | : | Heat Shrink Tubing |
| Overall Length (mm) | : | 30480 |
| Overall Length (m) | : | 30.48 |
| Maximum Operating Temperature (°F) | : | 275 |
| Nominal Recovered Wall Thickness (In.) | : | 0.025 |
| Minimum Operating Temperature (°C) | : | -55 |
| Material | : | Cross-Linked Polyolefin |
