Damp-Shrink™ HSTTVA50-Y Heat Shrink
MFG #HSTTVA50-Y
$17.02 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:

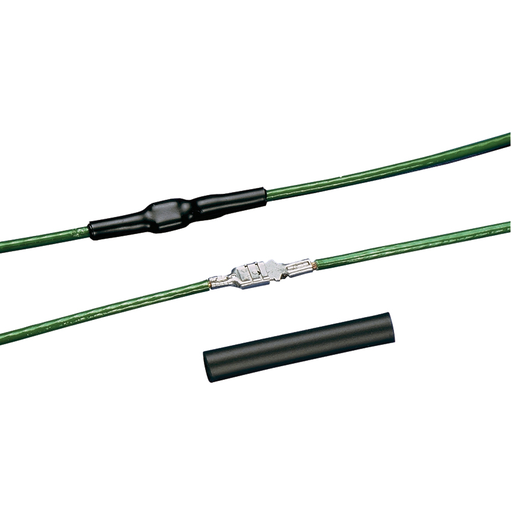

Flexible adhesive lined heat shrink in 6" pieces, .50" (12.7mm) diameter, adhesive lined black cross-linked polyolefin, 4 pc. package quantity.
HESCO Part Number
PANHSTTVA50Y
UPC
074983617494
Manufacturer Part Number
HSTTVA50-Y
Manufacturer
Panduit
Damp-Shrink™ HSTTVA50-Y Heat Shrink
MFG #HSTTVA50-Y
Product Description:
Flexible adhesive lined heat shrink in 6" pieces, .50" (12.7mm) diameter, adhesive lined black cross-linked polyolefin, 4 pc. package quantity.
HESCO Part Number
PANHSTTVA50Y
UPC
074983617494
Manufacturer Part Number
HSTTVA50-Y
Manufacturer
Panduit
$17.02 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Recognized, MIL SPEC
Specifications
| Country of Origin | : | South Korea |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Material | : | Cross-Linked Polyolefin |
| Overall Length (ft.) | : | 0.5 |
| Maximum Operating Temperature (°C) | : | 110 |
| Minimum Expanded Inside Diameter (In.) | : | 0.5 |
| Adhesive Lined | : | Yes |
| Shrink Temperature (°F) | : | 248 |
| Nominal Diameter (In.) | : | 0.5 |
| Product Type | : | Heat Shrink Tubing |
| Nominal Recovered Wall Thickness (In.) | : | 0.03 |
| Maximum Operating Temperature (°F) | : | 230 |
| Maximum Recovered Inside Diameter (mm) | : | 6.4 |
| Overall Length (In.) | : | 6 |
| Overall Length (m) | : | 0.15 |
| Sub Brand | : | Damp-Shrink™ |
| Application | : | Heat Shrink for damp applications. Provides excellent abrasion protection for insulating and protecting wires and cables |
| Nominal Recovered Wall Thickness (mm) | : | 0.8 |
| Minimum Expanded Inside Diameter (mm) | : | 12.7 |
| Overall Length (mm) | : | 152.4 |
| Minimum Operating Temperature (°F) | : | -67 |
| Maximum Recovered Inside Diameter (In.) | : | 0.25 |
| Nominal Diameter (mm) | : | 12.7 |
| Shrink Ratio | : | 2:1 |
| Color | : | Black |
| Shrink Temperature (°C) | : | 120 |
| Minimum Operating Temperature (°C) | : | -55 |
| Finish/Coating | : | Adhesive-Lined |
Packaging Details | ||
| UPC | : | 07498361749 |
| GTIN Package | : | 00074983617494 |
| Standard Package Volume Ft3 | : | 0.0245 |
| Standard Package Weight Pounds | : | 0.0889 |
| Std Package Height In | : | .85 |
| Std Package Height MM | : | 21.59 |
| Std Package Length In | : | 6.5 |
| Std Package Length MM | : | 165.1 |
| Std Package Width In | : | 2.8 |
| Std Package Width MM | : | 71.12 |
| Std. Pkg. UOM | : | Package |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983617499 |
| Standard Carton Volume Ft3 | : | 0.2446 |
| Standard Carton Weight Pounds | : | 0.8890 |
| Std Carton Height In | : | 4.55 |
| Std Carton Height MM | : | 115.57 |
| Std Carton Length In | : | 9.95 |
| Std Carton Length MM | : | 252.73 |
| Std Carton Width In | : | 6.4 |
| Std Carton Width MM | : | 162.56 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Package |
| EAN | : | 00074983617494 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 2,000 |
| Pallet Volume | : | 48.914211 |
| Pallet Weight | : | 177.8000 |
| RoHS Compliant | : | Compliant |
