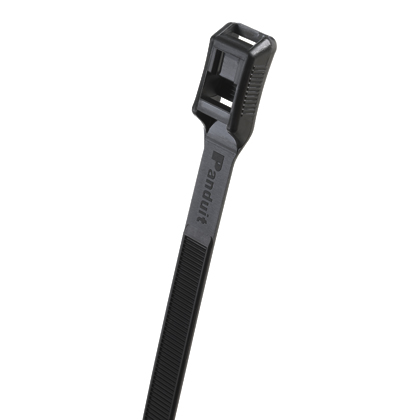

Hyper-V™ HV9150-C0 Hyper-V Cable Tie, Black, UV PA6.6, 20.7"L, 160lb, PK100
MFG #HV9150-C0
$1.46 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Panduit HV9150-C0 Hyper-VTTM in line cable ties have a perfect balance of strong and flexible. They are flexible enough to conform to irregular bundles, while double-sided teeth and a two-wedge locking design add extra locking strength with low threading force. A releasable head makes these in-line cable ties the ideal solution for temporary securing. Light-heavy cross section, 20.7” (525mm) length, made of Weather Resistant Nylon 6.6, are black in color, and come in packages of 100.
HESCO Part Number
PANHV9150C0
UPC
074983783175
Manufacturer Part Number
HV9150-C0
Manufacturer
Panduit
Hyper-V™ HV9150-C0 Hyper-V Cable Tie, Black, UV PA6.6, 20.7"L, 160lb, PK100
MFG #HV9150-C0
Product Description:
Panduit HV9150-C0 Hyper-VTTM in line cable ties have a perfect balance of strong and flexible. They are flexible enough to conform to irregular bundles, while double-sided teeth and a two-wedge locking design add extra locking strength with low threading force. A releasable head makes these in-line cable ties the ideal solution for temporary securing. Light-heavy cross section, 20.7” (525mm) length, made of Weather Resistant Nylon 6.6, are black in color, and come in packages of 100.
HESCO Part Number
PANHV9150C0
UPC
074983783175
Manufacturer Part Number
HV9150-C0
Manufacturer
Panduit
$1.46 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: RoHS Compliant
Packaging Details
| UPC | : | 07498378317 |
| GTIN Package | : | 00074983783175 |
| Standard Package Volume Ft3 | : | 0.1586 |
| Standard Package Weight Pounds | : | 2.1000 |
| Std Package Height In | : | 3.05 |
| Std Package Height MM | : | 77.47 |
| Std Package Length In | : | 22.45 |
| Std Package Length MM | : | 570.23 |
| Std Package Width In | : | 8.3 |
| Std Package Width MM | : | 210.82 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983783170 |
| Standard Carton Volume Ft3 | : | 1.5858 |
| Standard Carton Weight Pounds | : | 21.0000 |
| Std Carton Height In | : | 11.35 |
| Std Carton Height MM | : | 288.29 |
| Std Carton Length In | : | 23 |
| Std Carton Length MM | : | 584.2 |
| Std Carton Width In | : | 10.6 |
| Std Carton Width MM | : | 269.24 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983783175 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 50.745257 |
| Pallet Weight | : | 672.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Installation Temperature (°F) | : | -4 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Bundle Diameter (mm) | : | 150 |
| For Use With | : | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH, STHV |
| Environment | : | Indoor/Outdoor |
| Body Width (In.) | : | 0.35 |
| Body Thickness (In.) | : | 0.076 |
| Minimum Bundle Diameter (mm) | : | 10 |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Minimum Loop Tensile Strength (N) | : | 710 |
| Product Type | : | Cable Tie |
| Body Width (mm) | : | 8.9 |
| Maximum Operating Temperature (°C) | : | 85 |
| Maximum Bundle Diameter (In.) | : | 5.9 |
| Body Thickness (mm) | : | 1.9 |
| Color | : | Black |
| Sub Brand | : | Hyper-V™ |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Operating Temperature (°C) | : | -60 |
| Material | : | Nylon 6.6 |
| Overall Length (mm) | : | 525 |
| Overall Length (In.) | : | 20.7 |
| Minimum Loop Tensile Strength (lb) | : | 160 |
| Minimum Bundle Diameter (In.) | : | 0.39 |
| Minimum Installation Temperature (°C) | : | -20 |
Videos 1
- No
- Standards Met: RoHS Compliant
Packaging Details
UPC : 07498378317 GTIN Package : 00074983783175 Standard Package Volume Ft3 : 0.1586 Standard Package Weight Pounds : 2.1000 Std Package Height In : 3.05 Std Package Height MM : 77.47 Std Package Length In : 22.45 Std Package Length MM : 570.23 Std Package Width In : 8.3 Std Package Width MM : 210.82 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983783170 Standard Carton Volume Ft3 : 1.5858 Standard Carton Weight Pounds : 21.0000 Std Carton Height In : 11.35 Std Carton Height MM : 288.29 Std Carton Length In : 23 Std Carton Length MM : 584.2 Std Carton Width In : 10.6 Std Carton Width MM : 269.24 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983783175 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 32,000 Pallet Volume : 50.745257 Pallet Weight : 672.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Costa Rica Any Reason Not to Sell : N Product Segment : IEI Minimum Installation Temperature (°F) : -4 Minimum Operating Temperature (°F) : -76 Maximum Bundle Diameter (mm) : 150 For Use With : GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH, STHV Environment : Indoor/Outdoor Body Width (In.) : 0.35 Body Thickness (In.) : 0.076 Minimum Bundle Diameter (mm) : 10 Resistance Properties : UV-Resistant, Weather-Resistant Minimum Loop Tensile Strength (N) : 710 Product Type : Cable Tie Body Width (mm) : 8.9 Maximum Operating Temperature (°C) : 85 Maximum Bundle Diameter (In.) : 5.9 Body Thickness (mm) : 1.9 Color : Black Sub Brand : Hyper-V™ Maximum Operating Temperature (°F) : 185 Minimum Operating Temperature (°C) : -60 Material : Nylon 6.6 Overall Length (mm) : 525 Overall Length (In.) : 20.7 Minimum Loop Tensile Strength (lb) : 160 Minimum Bundle Diameter (In.) : 0.39 Minimum Installation Temperature (°C) : -20 - Selection Guides
Selection Guides 1
Product BulletinsProduct Bulletins 1
Part DrawingsPart Drawings 1 - Videos 1
