Pan-Lug™ LAA1/0-56-X Aluminum Compression Lugs
MFG #LAA1/0-56-X
$20.15 / E
EACH
EACH
Product Description:

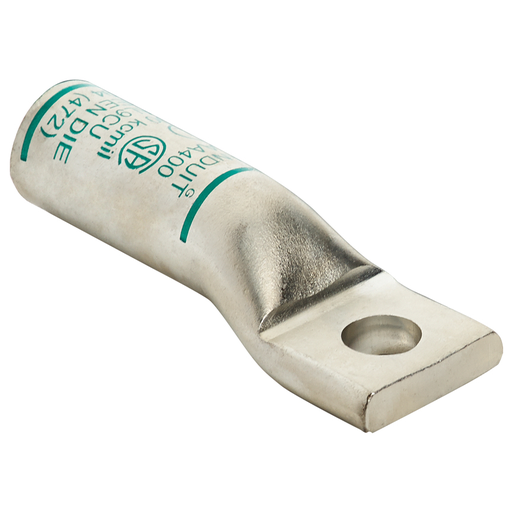

One-hole, aluminum, long barrel, 1/0 AWG, 5/16 (7.9mm) stud hole.
HESCO Part Number
PANLAA1/056X
UPC
074983910250
Manufacturer Part Number
LAA1/0-56-X
Manufacturer
Panduit
Pan-Lug™ LAA1/0-56-X Aluminum Compression Lugs
MFG #LAA1/0-56-X
Product Description:
One-hole, aluminum, long barrel, 1/0 AWG, 5/16 (7.9mm) stud hole.
HESCO Part Number
PANLAA1/056X
UPC
074983910250
Manufacturer Part Number
LAA1/0-56-X
Manufacturer
Panduit
$20.15 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA Certified, UL Listed 486A-486B File #E52164
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Panduit Die Index Number | : | P50 |
| Stud Hole Size (In.) | : | 5/16 |
| Stud Hole Size (mm) | : | 7.9 |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (In.) | : | 3.23 |
| Tongue Angle | : | Straight |
| Product Type | : | Compression Lug |
| Wire Strip Length (mm) | : | 39.7 |
| Burndy Die Index Number | : | 296 |
| Tongue Thickness (mm) | : | 6.4 |
| Tongue Thickness (In.) | : | 0.25 |
| Base Material | : | Aluminum |
| Barrel Length (In.) | : | 1.3 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Maximum Voltage (kV) | : | 35 |
| Overall Length (mm) | : | 82 |
| T & B Die Index Number | : | 50 |
| Barrel Length (mm) | : | 33.1 |
| Includes | : | Connector barrel pre-filled with oxide inhibiting joint compound |
| Tongue Width (In.) | : | 0.88 |
| Tongue Width (mm) | : | 22.4 |
| Wire Strip Length (In.) | : | 1-9/16 |
| Barrel Type | : | Standard |
| UL Temperature Rating (°C) | : | 90 |
| Finish/Coating | : | Tin-Plated |
| Tongue Type | : | Standard |
| Color Code | : | Tan |
| Inspection Window | : | No |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Beveled |
| Aluminum Conductor Size | : | 1/0 AWG |
| Copper Conductor Size | : | 1/0 AWG |
Packaging Details | ||
| UPC | : | 07498391025 |
| GTIN Package | : | 00074983910250 |
| Standard Package Volume Ft3 | : | 0.0324 |
| Standard Package Weight Pounds | : | 0.7500 |
| Std Package Height In | : | 3.5 |
| Std Package Height MM | : | 88.9 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983910250 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: CSA Certified, UL Listed 486A-486B File #E52164
- No
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Panduit Die Index Number : P50 Stud Hole Size (In.) : 5/16 Stud Hole Size (mm) : 7.9 Sub Brand : Pan-Lug™ Overall Length (In.) : 3.23 Tongue Angle : Straight Product Type : Compression Lug Wire Strip Length (mm) : 39.7 Burndy Die Index Number : 296 Tongue Thickness (mm) : 6.4 Tongue Thickness (In.) : 0.25 Base Material : Aluminum Barrel Length (In.) : 1.3 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Maximum Voltage (kV) : 35 Overall Length (mm) : 82 T & B Die Index Number : 50 Barrel Length (mm) : 33.1 Includes : Connector barrel pre-filled with oxide inhibiting joint compound Tongue Width (In.) : 0.88 Tongue Width (mm) : 22.4 Wire Strip Length (In.) : 1-9/16 Barrel Type : Standard UL Temperature Rating (°C) : 90 Finish/Coating : Tin-Plated Tongue Type : Standard Color Code : Tan Inspection Window : No Number of Stud Holes : 1 Barrel Entry : Beveled Aluminum Conductor Size : 1/0 AWG Copper Conductor Size : 1/0 AWG Packaging Details
UPC : 07498391025 GTIN Package : 00074983910250 Standard Package Volume Ft3 : 0.0324 Standard Package Weight Pounds : 0.7500 Std Package Height In : 3.5 Std Package Height MM : 88.9 Std Package Length In : 4.7 Std Package Length MM : 119.38 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983910250 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation Documents
