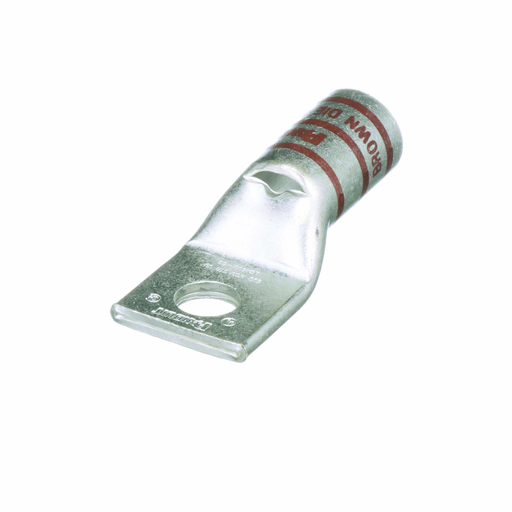

Pan-Lug™ LCA500-58-6 Copper Compression Connectors - Lugs
MFG #LCA500-58-6
$35.60 / E
EACH
EACH
Product Description:
One-hole, standard barrel with window lug, 500 kcmil cable, 5/8 stud hole.
HESCO Part Number
PANLCA500586
UPC
074983900657
Manufacturer Part Number
LCA500-58-6
Manufacturer
Panduit
Panduit
Pan-Lug™ LCA500-58-6 Copper Compression Connectors - Lugs
MFG #LCA500-58-6
Product Description:
One-hole, standard barrel with window lug, 500 kcmil cable, 5/8 stud hole.
HESCO Part Number
PANLCA500586
UPC
074983900657
Manufacturer Part Number
LCA500-58-6
Manufacturer
Panduit
$35.60 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Packaging Details
| UPC | : | 07498390065 |
| GTIN Package | : | 00074983900657 |
| Standard Package Volume Ft3 | : | 0.0674 |
| Standard Package Weight Pounds | : | 2.2350 |
| Std Package Height In | : | 3.55 |
| Std Package Height MM | : | 90.17 |
| Std Package Length In | : | 5.75 |
| Std Package Length MM | : | 146.05 |
| Std Package Width In | : | 3.55 |
| Std Package Width MM | : | 90.17 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983900657 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Voltage (kV) | : | 35 |
| Wire Strip Length (mm) | : | 46 |
| Overall Length (mm) | : | 95.5 |
| Panduit Die Index Number | : | P87 |
| Finish/Coating | : | Tin-Plated |
| Tongue Thickness (In.) | : | 0.22 |
| Burndy Die Index Number | : | 20 |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Size (mm) | : | 15.9 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Wire Strip Length (In.) | : | 1-13/16 |
| Tongue Angle | : | Straight |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 39.1 |
| T & B Die Index Number | : | 87 |
| Stud Hole Spacing (mm) | : | 0 |
| Product Type | : | Compression Lug |
| Tongue Thickness (mm) | : | 5.6 |
| Tongue Width (In.) | : | 1.54 |
| Stud Hole Size (In.) | : | 5/8 |
| Tongue Type | : | Standard |
| Color Code | : | Brown |
| Sub Brand | : | Pan-Lug™ |
| Barrel Length (In.) | : | 1.75 |
| Overall Length (In.) | : | 3.76 |
| Barrel Length (mm) | : | 44.5 |
| Barrel Type | : | Standard |
| UL Temperature Rating (°C) | : | 90 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 1 |
| Copper Conductor Size | : | 500 kcmil |
