CuLug,Blank,#6AWGPKG50
MFG #LCA6-00-L
$4.58 / E
EACH
EACH
Product Description:

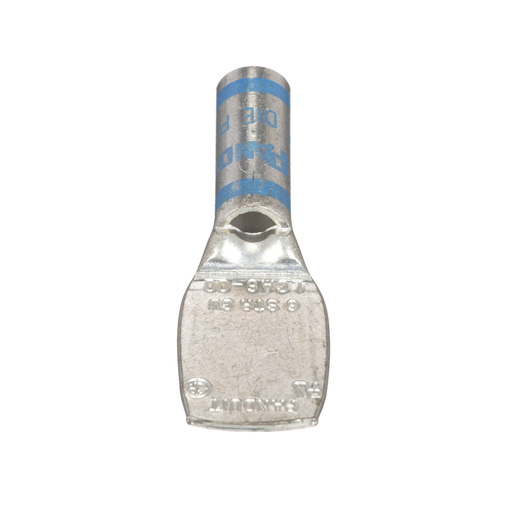

Blank tongue, standard barrel lug, #6 AWG wire.
HESCO Part Number
PANLCA600L
UPC
074983382262
Manufacturer Part Number
LCA6-00-L
Manufacturer
Panduit
CuLug,Blank,#6AWGPKG50
MFG #LCA6-00-L
Product Description:
Blank tongue, standard barrel lug, #6 AWG wire.
HESCO Part Number
PANLCA600L
UPC
074983382262
Manufacturer Part Number
LCA6-00-L
Manufacturer
Panduit
$4.58 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164
- No
Packaging Details
| UPC | : | 07498338226 |
| GTIN Package | : | 00074983382262 |
| Standard Package Volume Ft3 | : | 0.0312 |
| Standard Package Weight Pounds | : | 1.2500 |
| Std Package Height In | : | 3.441 |
| Std Package Height MM | : | 87.4014 |
| Std Package Length In | : | 4.882 |
| Std Package Length MM | : | 124.0028 |
| Std Package Width In | : | 3.441 |
| Std Package Width MM | : | 87.4014 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983382262 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| Stud Hole Size (In.) | : | 0 |
| Stud Hole Size (mm) | : | 0 |
| Tongue Type | : | Standard |
| Barrel Type | : | Standard |
| UL Temperature Rating (°C) | : | 90 |
| Product Type | : | Compression Lug |
| Tongue Thickness (In.) | : | 0.06 |
| Sub Brand | : | Pan-Lug™ |
| Tongue Thickness (mm) | : | 1.5 |
| T & B Die Index Number | : | 24 |
| Tongue Width (mm) | : | 15.7 |
| Barrel Length (mm) | : | 20.6 |
| Wire Strip Length (In.) | : | 7/8 |
| Tongue Angle | : | Straight |
| Overall Length (In.) | : | 1.83 |
| Maximum Voltage (kV) | : | 35 |
| Color Code | : | Blue |
| CSA Temperature Rating (°C) | : | 90 |
| Overall Length (mm) | : | 46.5 |
| Barrel Length (In.) | : | 0.81 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Spacing (mm) | : | 0 |
| Wire Strip Length (mm) | : | 22.2 |
| Panduit Die Index Number | : | P24 |
| Tongue Width (In.) | : | 0.62 |
| Finish/Coating | : | Tin-Plated |
| Burndy Die Index Number | : | 7 |
| Number of Stud Holes | : | 1 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Copper Conductor Size | : | 6 AWG |
- Standards Met: CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164
- No
Packaging Details
UPC : 07498338226 GTIN Package : 00074983382262 Standard Package Volume Ft3 : 0.0312 Standard Package Weight Pounds : 1.2500 Std Package Height In : 3.441 Std Package Height MM : 87.4014 Std Package Length In : 4.882 Std Package Length MM : 124.0028 Std Package Width In : 3.441 Std Package Width MM : 87.4014 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983382262 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Base Material : Copper Stud Hole Size (In.) : 0 Stud Hole Size (mm) : 0 Tongue Type : Standard Barrel Type : Standard UL Temperature Rating (°C) : 90 Product Type : Compression Lug Tongue Thickness (In.) : 0.06 Sub Brand : Pan-Lug™ Tongue Thickness (mm) : 1.5 T & B Die Index Number : 24 Tongue Width (mm) : 15.7 Barrel Length (mm) : 20.6 Wire Strip Length (In.) : 7/8 Tongue Angle : Straight Overall Length (In.) : 1.83 Maximum Voltage (kV) : 35 Color Code : Blue CSA Temperature Rating (°C) : 90 Overall Length (mm) : 46.5 Barrel Length (In.) : 0.81 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Stud Hole Spacing (mm) : 0 Wire Strip Length (mm) : 22.2 Panduit Die Index Number : P24 Tongue Width (In.) : 0.62 Finish/Coating : Tin-Plated Burndy Die Index Number : 7 Number of Stud Holes : 1 Inspection Window : Yes Barrel Entry : Beveled Copper Conductor Size : 6 AWG - Installation Documents
