Pan-Lug™ LCAF2-14H-E Copper Compression Connectors - Lugs
MFG #LCAF2-14H-E
$14.66 / E
EACH
EACH
Product Description:

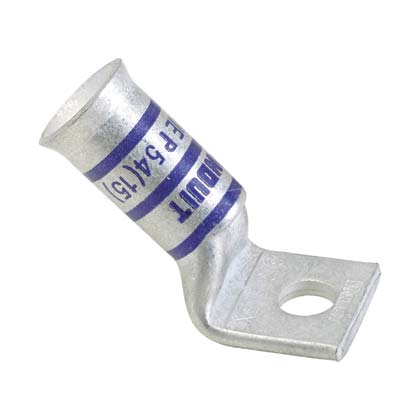

One-hole, flared barrel, #2 AWG wire, 1/4 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAF214HE
UPC
074983872411
Manufacturer Part Number
LCAF2-14H-E
Manufacturer
Panduit
Pan-Lug™ LCAF2-14H-E Copper Compression Connectors - Lugs
MFG #LCAF2-14H-E
Product Description:
One-hole, flared barrel, #2 AWG wire, 1/4 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAF214HE
UPC
074983872411
Manufacturer Part Number
LCAF2-14H-E
Manufacturer
Panduit
$14.66 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
Packaging Details
| UPC | : | 07498387241 |
| GTIN Package | : | 00074983872411 |
| Standard Package Volume Ft3 | : | 0.0184 |
| Standard Package Weight Pounds | : | 1.0340 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 3.9 |
| Std Package Length MM | : | 99.06 |
| Std Package Width In | : | 2.4 |
| Std Package Width MM | : | 60.96 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 20 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983872411 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Finish/Coating | : | Tin-Plated |
| Tongue Thickness (mm) | : | 2.8 |
| Stud Hole Size (In.) | : | 1/4 |
| Tongue Width (In.) | : | 0.7 |
| Tongue Type | : | Standard |
| Color Code | : | Brown |
| Product Type | : | Compression Lug |
| Wire Strip Length (In.) | : | 15/16 |
| Overall Length (mm) | : | 38.6 |
| Overall Length (In.) | : | 1.52 |
| CSA Temperature Rating (°C) | : | 90 |
| Sub Brand | : | Pan-Lug™ |
| Maximum Voltage (kV) | : | 35 |
| Barrel Length (In.) | : | 0.88 |
| Barrel Type | : | Standard |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tongue Angle | : | 45° |
| Tongue Thickness (In.) | : | 0.11 |
| UL Temperature Rating (°C) | : | 90 |
| Barrel Length (mm) | : | 22.4 |
| Panduit Die Index Number | : | P33 |
| Tongue Width (mm) | : | 17.8 |
| Wire Strip Length (mm) | : | 23.8 |
| Stud Hole Size (mm) | : | 6.4 |
| Base Material | : | Copper |
| Barrel Entry | : | Flared |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 1 |
| DLO Copper Flex Conductor Size | : | 2 AWG |
| Class K Copper Flex Conductor Size | : | 2 AWG |
| Class M Copper Flex Conductor Size | : | 2 AWG |
- Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
Packaging Details
UPC : 07498387241 GTIN Package : 00074983872411 Standard Package Volume Ft3 : 0.0184 Standard Package Weight Pounds : 1.0340 Std Package Height In : 3.4 Std Package Height MM : 86.36 Std Package Length In : 3.9 Std Package Length MM : 99.06 Std Package Width In : 2.4 Std Package Width MM : 60.96 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 20 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983872411 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Finish/Coating : Tin-Plated Tongue Thickness (mm) : 2.8 Stud Hole Size (In.) : 1/4 Tongue Width (In.) : 0.7 Tongue Type : Standard Color Code : Brown Product Type : Compression Lug Wire Strip Length (In.) : 15/16 Overall Length (mm) : 38.6 Overall Length (In.) : 1.52 CSA Temperature Rating (°C) : 90 Sub Brand : Pan-Lug™ Maximum Voltage (kV) : 35 Barrel Length (In.) : 0.88 Barrel Type : Standard Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tongue Angle : 45° Tongue Thickness (In.) : 0.11 UL Temperature Rating (°C) : 90 Barrel Length (mm) : 22.4 Panduit Die Index Number : P33 Tongue Width (mm) : 17.8 Wire Strip Length (mm) : 23.8 Stud Hole Size (mm) : 6.4 Base Material : Copper Barrel Entry : Flared Inspection Window : Yes Number of Stud Holes : 1 DLO Copper Flex Conductor Size : 2 AWG Class K Copper Flex Conductor Size : 2 AWG Class M Copper Flex Conductor Size : 2 AWG - Installation Documents
