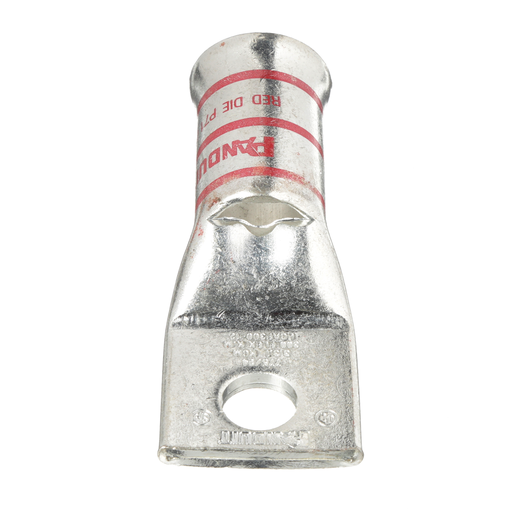

Pan-Lug™ LCAF300-12-6 Copper Compression Connectors - Lugs
MFG #LCAF300-12-6
$34.95 / E
EACH
EACH
Product Description:
One-hole, flared barrel, 300 kcmil cable, 1/2 stud hole.
HESCO Part Number
PANLCAF300126
UPC
074983557998
Manufacturer Part Number
LCAF300-12-6
Manufacturer
Panduit
Pan-Lug™ LCAF300-12-6 Copper Compression Connectors - Lugs
MFG #LCAF300-12-6
Product Description:
One-hole, flared barrel, 300 kcmil cable, 1/2 stud hole.
HESCO Part Number
PANLCAF300126
UPC
074983557998
Manufacturer Part Number
LCAF300-12-6
Manufacturer
Panduit
$34.95 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Panduit Die Index Number | : | P71 |
| CSA Temperature Rating (°C) | : | 90 |
| Overall Length (mm) | : | 85.6 |
| Stud Hole Size (In.) | : | 1/2 |
| Product Type | : | Compression Lug |
| Tongue Thickness (mm) | : | 4.6 |
| Tongue Thickness (In.) | : | 0.18 |
| Overall Length (In.) | : | 3.37 |
| Stud Hole Size (mm) | : | 12.7 |
| Barrel Length (mm) | : | 42 |
| Barrel Type | : | Standard |
| Tongue Type | : | Standard |
| Stud Hole Spacing (mm) | : | 0 |
| Sub Brand | : | Pan-Lug™ |
| Tongue Width (mm) | : | 35.3 |
| Base Material | : | Copper |
| Finish/Coating | : | Tin-Plated |
| Color Code | : | Red |
| Maximum Voltage (kV) | : | 35 |
| Wire Strip Length (mm) | : | 44.5 |
| Tongue Width (In.) | : | 1.39 |
| UL Temperature Rating (°C) | : | 90 |
| Barrel Length (In.) | : | 1.65 |
| Tongue Angle | : | Straight |
| Wire Strip Length (In.) | : | 1-3/4 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Flared |
| Class K Copper Flex Conductor Size | : | 300 kcmil |
| Class M Copper Flex Conductor Size | : | 300 kcmil |
| DLO Copper Flex Conductor Size | : | 313.1 kcmil |
Packaging Details | ||
| UPC | : | 07498355799 |
| GTIN Package | : | 00074983557998 |
| Standard Package Volume Ft3 | : | 0.0328 |
| Standard Package Weight Pounds | : | 1.6698 |
| Std Package Height In | : | 3.35 |
| Std Package Height MM | : | 85.09 |
| Std Package Length In | : | 4.75 |
| Std Package Length MM | : | 120.65 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983557998 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Panduit Die Index Number : P71 CSA Temperature Rating (°C) : 90 Overall Length (mm) : 85.6 Stud Hole Size (In.) : 1/2 Product Type : Compression Lug Tongue Thickness (mm) : 4.6 Tongue Thickness (In.) : 0.18 Overall Length (In.) : 3.37 Stud Hole Size (mm) : 12.7 Barrel Length (mm) : 42 Barrel Type : Standard Tongue Type : Standard Stud Hole Spacing (mm) : 0 Sub Brand : Pan-Lug™ Tongue Width (mm) : 35.3 Base Material : Copper Finish/Coating : Tin-Plated Color Code : Red Maximum Voltage (kV) : 35 Wire Strip Length (mm) : 44.5 Tongue Width (In.) : 1.39 UL Temperature Rating (°C) : 90 Barrel Length (In.) : 1.65 Tongue Angle : Straight Wire Strip Length (In.) : 1-3/4 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Inspection Window : Yes Number of Stud Holes : 1 Barrel Entry : Flared Class K Copper Flex Conductor Size : 300 kcmil Class M Copper Flex Conductor Size : 300 kcmil DLO Copper Flex Conductor Size : 313.1 kcmil Packaging Details
UPC : 07498355799 GTIN Package : 00074983557998 Standard Package Volume Ft3 : 0.0328 Standard Package Weight Pounds : 1.6698 Std Package Height In : 3.35 Std Package Height MM : 85.09 Std Package Length In : 4.75 Std Package Length MM : 120.65 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 6 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983557998 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
