Pan-Lug™ LCAF4/0-12-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One 1/2" Stud
MFG #LCAF4/0-12-X
$20.37 / E
EACH
EACH
Product Description:

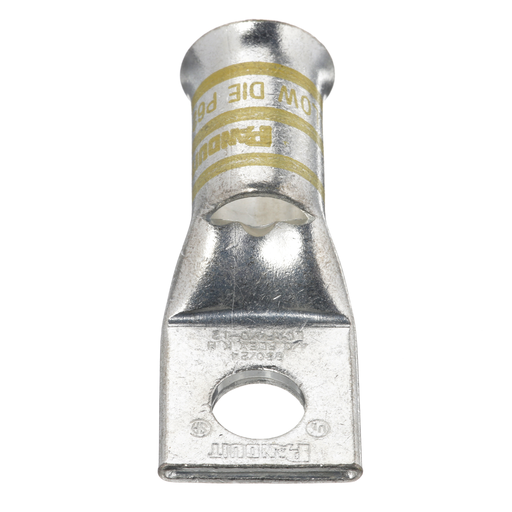

The LCAF4/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAF4/012X
UPC
074983557967
Manufacturer Part Number
LCAF4/0-12-X
Manufacturer
Panduit
Pan-Lug™ LCAF4/0-12-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One 1/2" Stud
MFG #LCAF4/0-12-X
Product Description:
The LCAF4/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAF4/012X
UPC
074983557967
Manufacturer Part Number
LCAF4/0-12-X
Manufacturer
Panduit
$20.37 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
- No
Packaging Details
| UPC | : | 07498355796 |
| GTIN Package | : | 00074983557967 |
| Standard Package Volume Ft3 | : | 0.0328 |
| Standard Package Weight Pounds | : | 1.5250 |
| Std Package Height In | : | 3.45 |
| Std Package Height MM | : | 87.63 |
| Std Package Length In | : | 4.8 |
| Std Package Length MM | : | 121.92 |
| Std Package Width In | : | 3.35 |
| Std Package Width MM | : | 85.09 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983557967 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Stud Hole Size (In.) | : | 1/2 |
| Stud Hole Size (mm) | : | 12.7 |
| Wire Strip Length (In.) | : | 1-7/16 |
| CSA Temperature Rating (°C) | : | 90 |
| Wire Strip Length (mm) | : | 36.3 |
| Sub Brand | : | Pan-Lug™ |
| Finish/Coating | : | Tin-Plated |
| Barrel Length (In.) | : | 1.35 |
| Tongue Width (mm) | : | 29.7 |
| Burndy Die Index Number | : | 16 |
| UL Temperature Rating (°C) | : | 90 |
| Stud Hole Spacing (mm) | : | 0 |
| Barrel Length (mm) | : | 34.3 |
| Tongue Thickness (In.) | : | 0.14 |
| Tongue Width (In.) | : | 1.17 |
| Panduit Die Index Number | : | P62 |
| Overall Length (mm) | : | 73.2 |
| Tongue Angle | : | Straight |
| Barrel Type | : | Standard |
| Tongue Type | : | Standard |
| T & B Die Index Number | : | 16 |
| Base Material | : | Copper |
| Product Type | : | Compression Lug |
| Maximum Voltage (kV) | : | 35 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color Code | : | Yellow |
| Overall Length (In.) | : | 2.88 |
| Tongue Thickness (mm) | : | 3.6 |
| Barrel Entry | : | Flared |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 1 |
| DLO Copper Flex Conductor Size | : | 4/0 AWG |
| Class M Copper Flex Conductor Size | : | 4/0 AWG |
| Class K Copper Flex Conductor Size | : | 4/0 AWG |
Part Drawings
Part Drawings 1
