Pan-Lug™ LCAN3/0-38-X Comp. Lug, 3/0, Narrow, Tin Plt Copper, Strt, 3/8" Stud
MFG #LCAN3/0-38-X
$19.01 / E
EACH
EACH
Product Description:

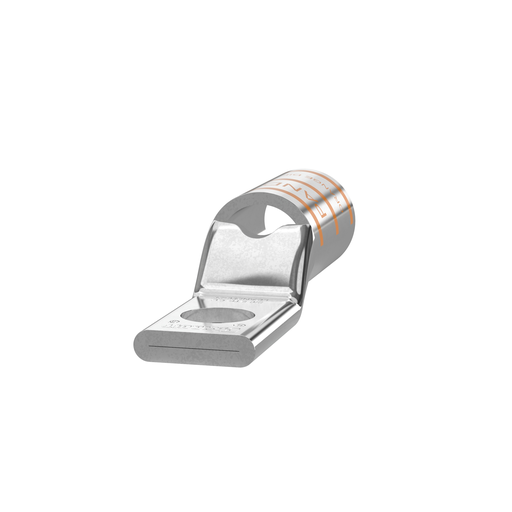

The LCAN3/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAN3038X
UPC
074983603381
Manufacturer Part Number
LCAN3/0-38-X
Manufacturer
Panduit
Pan-Lug™ LCAN3/0-38-X Comp. Lug, 3/0, Narrow, Tin Plt Copper, Strt, 3/8" Stud
MFG #LCAN3/0-38-X
Product Description:
The LCAN3/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAN3038X
UPC
074983603381
Manufacturer Part Number
LCAN3/0-38-X
Manufacturer
Panduit
$19.01 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
- No
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Wire Strip Length (In.) | : | 1-5/16 |
| Barrel Length (In.) | : | 1.14 |
| Overall Length (In.) | : | 2.36 |
| Stud Hole Size (In.) | : | 3/8 |
| Stud Hole Spacing (mm) | : | 0 |
| Barrel Length (mm) | : | 29 |
| Tongue Width (In.) | : | 0.64 |
| Tongue Width (mm) | : | 16.3 |
| T & B Die Index Number | : | 50 |
| Tongue Thickness (In.) | : | 0.16 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Size (mm) | : | 9.5 |
| Base Material | : | Copper |
| Barrel Type | : | Standard |
| Tongue Angle | : | Straight |
| Finish/Coating | : | Tin-Plated |
| UL Temperature Rating (°C) | : | 90 |
| Panduit Die Index Number | : | P50 |
| Wire Strip Length (mm) | : | 30.2 |
| Tongue Thickness (mm) | : | 4.1 |
| Color Code | : | Orange |
| Sub Brand | : | Pan-Lug™ |
| Product Type | : | Compression Lug |
| Tongue Type | : | Narrow |
| Overall Length (mm) | : | 59.4 |
| Maximum Voltage (kV) | : | 35 |
| Burndy Die Index Number | : | 14 |
| CSA Temperature Rating (°C) | : | 90 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 1 |
| Copper Conductor Size | : | 3/0 AWG |
Packaging Details | ||
| UPC | : | 07498360338 |
| GTIN Package | : | 00074983603381 |
| Standard Package Volume Ft3 | : | 0.0318 |
| Standard Package Weight Pounds | : | 0.8500 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.35 |
| Std Package Width MM | : | 85.09 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983603381 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
