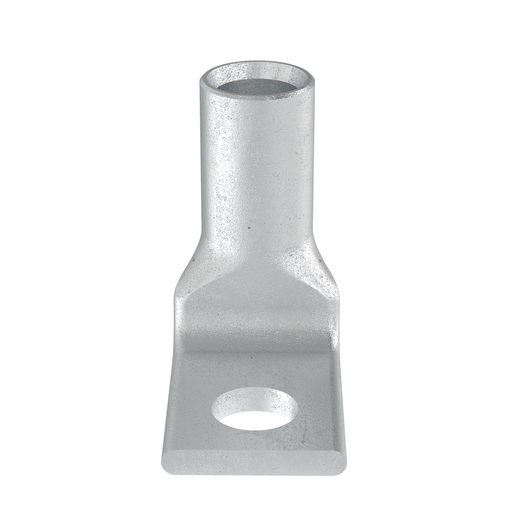

Pan-Lug™ LCAS4-14F-L Comp. Lug, 4, Tin Plt Copper, 90°, One 1/4" Stud, PK50
MFG #LCAS4-14F-L
$6.44 / E
EACH
EACH
Product Description:
The LCAS4-14F-L Tin-Plated Copper Compression Lug, one-hole, short barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAS414FL
UPC
074983868957
Manufacturer Part Number
LCAS4-14F-L
Manufacturer
Panduit
Pan-Lug™ LCAS4-14F-L Comp. Lug, 4, Tin Plt Copper, 90°, One 1/4" Stud, PK50
MFG #LCAS4-14F-L
Product Description:
The LCAS4-14F-L Tin-Plated Copper Compression Lug, one-hole, short barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAS414FL
UPC
074983868957
Manufacturer Part Number
LCAS4-14F-L
Manufacturer
Panduit
$6.44 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, Meets NEBS Level 3, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Stud Hole Spacing (mm) | : | 0 |
| UL Temperature Rating (°C) | : | 90 |
| Wire Strip Length (mm) | : | 15.9 |
| Tongue Thickness (mm) | : | 2.3 |
| T & B Die Index Number | : | 29 |
| Stud Hole Size (mm) | : | 6.4 |
| Barrel Length (In.) | : | 0.53 |
| Overall Length (mm) | : | 28.5 |
| Finish/Coating | : | Tin-Plated |
| Tongue Width (mm) | : | 14 |
| Barrel Type | : | Short |
| Color Code | : | Gray |
| Burndy Die Index Number | : | 8 |
| Barrel Length (mm) | : | 13.5 |
| Overall Length (In.) | : | 1.12 |
| Maximum Voltage (kV) | : | 35 |
| Tongue Width (In.) | : | 0.55 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Sub Brand | : | Pan-Lug™ |
| Base Material | : | Copper |
| Tongue Angle | : | 90° |
| Tongue Thickness (In.) | : | 0.09 |
| Tongue Type | : | Standard |
| Wire Strip Length (In.) | : | 5/8 |
| Panduit Die Index Number | : | P29 |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Size (In.) | : | 1/4 |
| Product Type | : | Compression Lug |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 1 |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 4 AWG |
