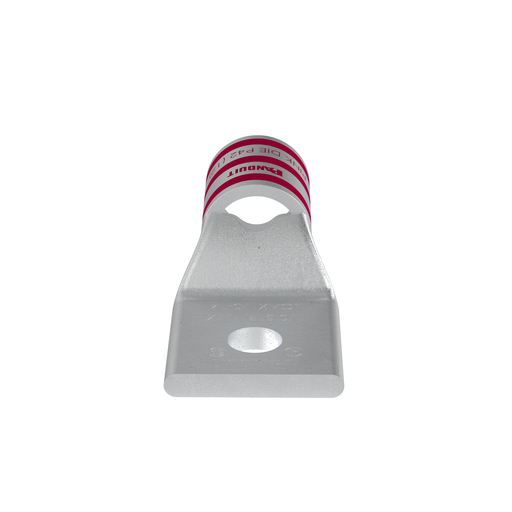

Pan-Lug™ LCAX1/0-14-X Comp. Lug, 1/0, Flex, Tin Plt Copper, One 1/4" Stud, PK10
MFG #LCAX1/0-14-X
$11.70 / E
EACH
EACH
Product Description:
The LCAX1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAX1/014X
UPC
074983435210
Manufacturer Part Number
LCAX1/0-14-X
Manufacturer
Panduit
Pan-Lug™ LCAX1/0-14-X Comp. Lug, 1/0, Flex, Tin Plt Copper, One 1/4" Stud, PK10
MFG #LCAX1/0-14-X
Product Description:
The LCAX1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAX1/014X
UPC
074983435210
Manufacturer Part Number
LCAX1/0-14-X
Manufacturer
Panduit
$11.70 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Packaging Details
| UPC | : | 07498343521 |
| GTIN Package | : | 00074983435210 |
| Standard Package Volume Ft3 | : | 0.0184 |
| Standard Package Weight Pounds | : | 0.8330 |
| Std Package Height In | : | 3.35 |
| Std Package Height MM | : | 85.09 |
| Std Package Length In | : | 4.75 |
| Std Package Length MM | : | 120.65 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983435210 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Type | : | Standard |
| Tongue Thickness (mm) | : | 3.3 |
| Tongue Thickness (In.) | : | 0.13 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Barrel Length (In.) | : | 0.72 |
| Barrel Length (mm) | : | 18.3 |
| Tongue Width (mm) | : | 21.6 |
| Sub Brand | : | Pan-Lug™ |
| Wire Strip Length (In.) | : | 3/4 |
| Finish/Coating | : | Tin-Plated |
| Product Type | : | Compression Lug |
| Maximum Voltage (kV) | : | 35 |
| T & B Die Index Number | : | 42 |
| Tongue Width (In.) | : | 0.85 |
| Tongue Angle | : | Straight |
| Stud Hole Spacing (mm) | : | 0 |
| Stud Hole Size (In.) | : | 1/4 |
| Wire Strip Length (mm) | : | 19.1 |
| Burndy Die Index Number | : | 12 |
| Panduit Die Index Number | : | P42 |
| UL Temperature Rating (°C) | : | 90 |
| Overall Length (mm) | : | 46.2 |
| Color Code | : | Pink |
| Overall Length (In.) | : | 1.82 |
| Stud Hole Size (mm) | : | 6.4 |
| Tongue Type | : | Standard |
| Base Material | : | Copper |
| CSA Temperature Rating (°C) | : | 90 |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Beveled |
| Class H Copper Flex Conductor Size | : | 1/0 AWG |
| Copper Conductor Size | : | 1/0 AWG |
| DLO Copper Flex Conductor Size | : | 1/0 AWG |
| Class G Copper Flex Conductor Size | : | 1/0 AWG |
| Class M Copper Flex Conductor Size | : | 1/0 AWG |
| Class I Copper Flex Conductor Size | : | 1/0 AWG |
| Class K Copper Flex Conductor Size | : | 1/0 AWG |
