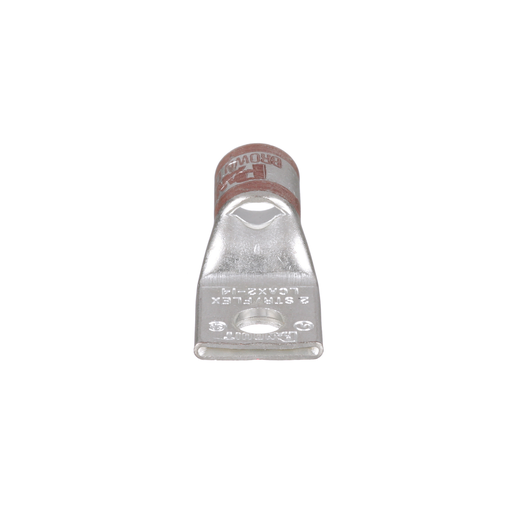

Pan-Lug™ LCAX2-14-E Comp. Lug, Flex, Tin Plt Copper, Strt, One 1/4" Stud, PK20
MFG #LCAX2-14-E
$10.07 / E
EACH
EACH
Product Description:
The LCAX2-14-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAX214E
UPC
074983442645
Manufacturer Part Number
LCAX2-14-E
Manufacturer
Panduit
Pan-Lug™ LCAX2-14-E Comp. Lug, Flex, Tin Plt Copper, Strt, One 1/4" Stud, PK20
MFG #LCAX2-14-E
Product Description:
The LCAX2-14-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
HESCO Part Number
PANLCAX214E
UPC
074983442645
Manufacturer Part Number
LCAX2-14-E
Manufacturer
Panduit
$10.07 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Finish/Coating | : | Tin-Plated |
| Barrel Length (mm) | : | 15 |
| Stud Hole Spacing (mm) | : | 0 |
| Maximum Voltage (kV) | : | 35 |
| Panduit Die Index Number | : | P33 |
| Tongue Thickness (In.) | : | 0.11 |
| Tongue Angle | : | Straight |
| Sub Brand | : | Pan-Lug™ |
| Tongue Thickness (mm) | : | 2.8 |
| Tongue Width (mm) | : | 17.8 |
| Base Material | : | Copper |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Product Type | : | Compression Lug |
| Barrel Type | : | Standard |
| Wire Strip Length (In.) | : | 11/16 |
| Tongue Type | : | Standard |
| Overall Length (mm) | : | 38.1 |
| CSA Temperature Rating (°C) | : | 90 |
| Burndy Die Index Number | : | 10 |
| UL Temperature Rating (°C) | : | 90 |
| T & B Die Index Number | : | 33 |
| Stud Hole Size (mm) | : | 6.4 |
| Color Code | : | Brown |
| Tongue Width (In.) | : | 0.7 |
| Wire Strip Length (mm) | : | 17.5 |
| Barrel Length (In.) | : | 0.59 |
| Overall Length (In.) | : | 1.5 |
| Stud Hole Size (In.) | : | 1/4 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 1 |
| Class H Copper Flex Conductor Size | : | 2 AWG |
| Class G Copper Flex Conductor Size | : | 2 AWG |
| Class I Copper Flex Conductor Size | : | 2 AWG |
| Class K Copper Flex Conductor Size | : | 2 AWG |
| DLO Copper Flex Conductor Size | : | 2 AWG |
| Class M Copper Flex Conductor Size | : | 2 AWG |
| Copper Conductor Size | : | 2 AWG |
Packaging Details | ||
| UPC | : | 07498344264 |
| GTIN Package | : | 00074983442645 |
| Standard Package Volume Ft3 | : | 0.0184 |
| Standard Package Weight Pounds | : | 0.8640 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 20 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983442645 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
