Pan-Lug™ LCAX250-38H-X Copper Compression Connectors - Lugs
MFG #LCAX250-38H-X
$35.94 / E
EACH
EACH
Product Description:

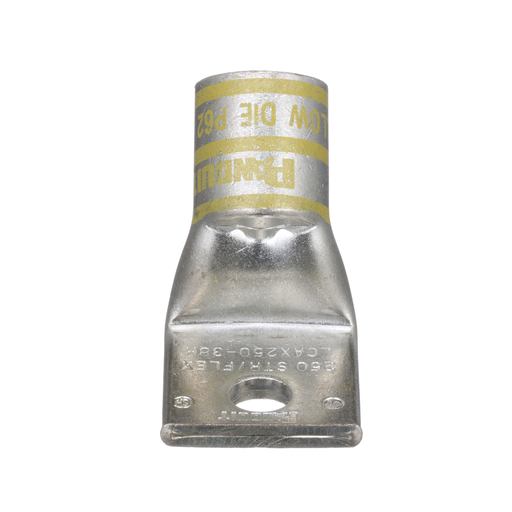

One-hole, flex lug, 250 kcmil cable, 3/8 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAX25038HX
UPC
074983435715
Manufacturer Part Number
LCAX250-38H-X
Manufacturer
Panduit
Pan-Lug™ LCAX250-38H-X Copper Compression Connectors - Lugs
MFG #LCAX250-38H-X
Product Description:
One-hole, flex lug, 250 kcmil cable, 3/8 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAX25038HX
UPC
074983435715
Manufacturer Part Number
LCAX250-38H-X
Manufacturer
Panduit
$35.94 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Packaging Details
| UPC | : | 07498343571 |
| GTIN Package | : | 00074983435715 |
| Standard Package Volume Ft3 | : | 0.0328 |
| Standard Package Weight Pounds | : | 1.9200 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.9 |
| Std Package Length MM | : | 124.46 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983435715 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| UL Temperature Rating (°C) | : | 90 |
| Burndy Die Index Number | : | 16 |
| Finish/Coating | : | Tin-Plated |
| Tongue Type | : | Standard |
| Overall Length (mm) | : | 58.4 |
| Stud Hole Size (In.) | : | 3/8 |
| Tongue Thickness (In.) | : | 0.17 |
| Stud Hole Spacing (mm) | : | 0 |
| Color Code | : | Yellow |
| Tongue Thickness (mm) | : | 4.3 |
| Panduit Die Index Number | : | P62 |
| Wire Strip Length (mm) | : | 26.9 |
| Stud Hole Size (mm) | : | 9.5 |
| Product Type | : | Compression Lug |
| Barrel Length (mm) | : | 26.2 |
| Tongue Angle | : | 45° |
| Barrel Length (In.) | : | 1.03 |
| Tongue Width (mm) | : | 32.5 |
| Sub Brand | : | Pan-Lug™ |
| Base Material | : | Copper |
| Maximum Voltage (kV) | : | 35 |
| Wire Strip Length (In.) | : | 1-1/16 |
| Tongue Width (In.) | : | 1.28 |
| Overall Length (In.) | : | 2.3 |
| CSA Temperature Rating (°C) | : | 90 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| T & B Die Index Number | : | 62 |
| Barrel Type | : | Standard |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Beveled |
| Class K Copper Flex Conductor Size | : | 250 kcmil |
| Class I Copper Flex Conductor Size | : | 250 kcmil |
| DLO Copper Flex Conductor Size | : | 262.6 kcmil |
| Class G Copper Flex Conductor Size | : | 250 kcmil |
| Class H Copper Flex Conductor Size | : | 250 kcmil |
| Class M Copper Flex Conductor Size | : | 250 kcmil |
Part Drawings
Part Drawings 1
Videos
Installation Documents
Installation Documents 1
Product Bulletins
Product Bulletins 1
Part Drawings 1Videos
Installation Documents
Installation Documents 1Product Bulletins
Product Bulletins 1Videos 1
Videos 2
Videos 2
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Packaging Details
UPC : 07498343571 GTIN Package : 00074983435715 Standard Package Volume Ft3 : 0.0328 Standard Package Weight Pounds : 1.9200 Std Package Height In : 3.4 Std Package Height MM : 86.36 Std Package Length In : 4.9 Std Package Length MM : 124.46 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983435715 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI UL Temperature Rating (°C) : 90 Burndy Die Index Number : 16 Finish/Coating : Tin-Plated Tongue Type : Standard Overall Length (mm) : 58.4 Stud Hole Size (In.) : 3/8 Tongue Thickness (In.) : 0.17 Stud Hole Spacing (mm) : 0 Color Code : Yellow Tongue Thickness (mm) : 4.3 Panduit Die Index Number : P62 Wire Strip Length (mm) : 26.9 Stud Hole Size (mm) : 9.5 Product Type : Compression Lug Barrel Length (mm) : 26.2 Tongue Angle : 45° Barrel Length (In.) : 1.03 Tongue Width (mm) : 32.5 Sub Brand : Pan-Lug™ Base Material : Copper Maximum Voltage (kV) : 35 Wire Strip Length (In.) : 1-1/16 Tongue Width (In.) : 1.28 Overall Length (In.) : 2.3 CSA Temperature Rating (°C) : 90 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V T & B Die Index Number : 62 Barrel Type : Standard Inspection Window : Yes Number of Stud Holes : 1 Barrel Entry : Beveled Class K Copper Flex Conductor Size : 250 kcmil Class I Copper Flex Conductor Size : 250 kcmil DLO Copper Flex Conductor Size : 262.6 kcmil Class G Copper Flex Conductor Size : 250 kcmil Class H Copper Flex Conductor Size : 250 kcmil Class M Copper Flex Conductor Size : 250 kcmil - Part DrawingsPart Drawings 1
