CuLug,300kcmil,5/8StudPKG6
MFG #LCAX300-58-6
$39.04 / E
EACH
EACH
Product Description:

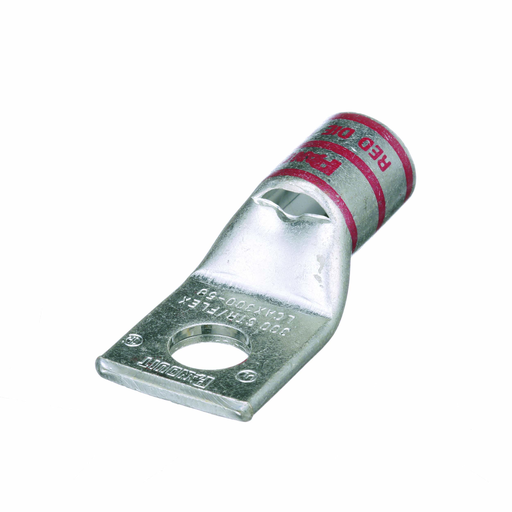

One-hole, flex lug, 300 kcmil cable, 5/8 stud hole.
HESCO Part Number
PANLCAX300586
UPC
074983435852
Manufacturer Part Number
LCAX300-58-6
Manufacturer
Panduit
CuLug,300kcmil,5/8StudPKG6
MFG #LCAX300-58-6
Product Description:
One-hole, flex lug, 300 kcmil cable, 5/8 stud hole.
HESCO Part Number
PANLCAX300586
UPC
074983435852
Manufacturer Part Number
LCAX300-58-6
Manufacturer
Panduit
$39.04 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Voltage (kV) | : | 35 |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Type | : | Standard |
| Color Code | : | Red |
| Wire Strip Length (mm) | : | 31.8 |
| Stud Hole Size (In.) | : | 5/8 |
| Base Material | : | Copper |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tongue Width (mm) | : | 35.3 |
| Burndy Die Index Number | : | 18 |
| Wire Strip Length (In.) | : | 1-1/4 |
| Overall Length (mm) | : | 79.3 |
| Tongue Width (In.) | : | 1.39 |
| Barrel Length (In.) | : | 1.19 |
| Barrel Length (mm) | : | 30.2 |
| Tongue Thickness (mm) | : | 4.6 |
| Finish/Coating | : | Tin-Plated |
| T & B Die Index Number | : | 71H |
| Sub Brand | : | Pan-Lug™ |
| Tongue Angle | : | Straight |
| Overall Length (In.) | : | 3.12 |
| Tongue Thickness (In.) | : | 0.18 |
| Stud Hole Spacing (mm) | : | 0 |
| Panduit Die Index Number | : | P71 |
| Barrel Type | : | Standard |
| Stud Hole Size (mm) | : | 15.9 |
| CSA Temperature Rating (°C) | : | 90 |
| Product Type | : | Compression Lug |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Beveled |
| Class H Copper Flex Conductor Size | : | 300 kcmil |
| Class I Copper Flex Conductor Size | : | 300 kcmil |
| Class K Copper Flex Conductor Size | : | 300 kcmil |
| Class G Copper Flex Conductor Size | : | 300 kcmil |
| Class M Copper Flex Conductor Size | : | 300 kcmil |
| DLO Copper Flex Conductor Size | : | 313.1 kcmil |
Packaging Details | ||
| UPC | : | 07498343585 |
| GTIN Package | : | 00074983435852 |
| Standard Package Volume Ft3 | : | 0.0328 |
| Standard Package Weight Pounds | : | 1.4436 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.9 |
| Std Package Length MM | : | 124.46 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983435852 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
