Pan-Lug™ LCAX350-12H-6 Copper Compression Connectors - Lugs
MFG #LCAX350-12H-6
$48.23 / E
EACH
EACH
Product Description:

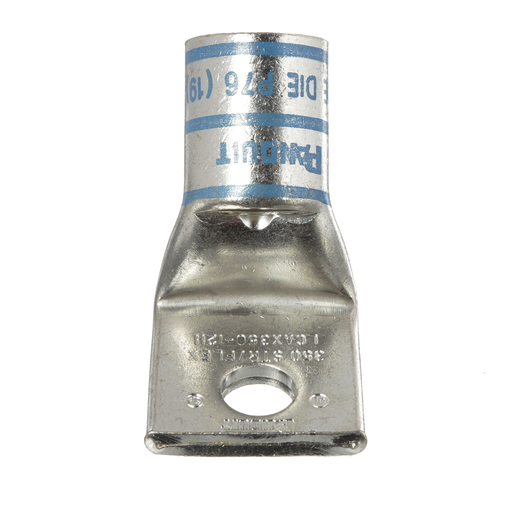

One-hole, flex lug, 350 kcmil cable, 1/2 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAX35012H6
UPC
074983435920
Manufacturer Part Number
LCAX350-12H-6
Manufacturer
Panduit
Panduit
Pan-Lug™ LCAX350-12H-6 Copper Compression Connectors - Lugs
MFG #LCAX350-12H-6
Product Description:
One-hole, flex lug, 350 kcmil cable, 1/2 stud hole, 45° angle tongue.
HESCO Part Number
PANLCAX35012H6
UPC
074983435920
Manufacturer Part Number
LCAX350-12H-6
Manufacturer
Panduit
$48.23 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Finish/Coating | : | Tin-Plated |
| Burndy Die Index Number | : | 19 |
| Tongue Width (mm) | : | 39.1 |
| Panduit Die Index Number | : | P76 |
| Barrel Length (mm) | : | 32.8 |
| Tongue Thickness (In.) | : | 0.22 |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (In.) | : | 2.78 |
| Stud Hole Size (mm) | : | 12.7 |
| Wire Strip Length (mm) | : | 34.9 |
| Tongue Type | : | Standard |
| Barrel Type | : | Standard |
| UL Temperature Rating (°C) | : | 90 |
| Color Code | : | Blue |
| Stud Hole Spacing (mm) | : | 0 |
| Product Type | : | Compression Lug |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Thickness (mm) | : | 5.6 |
| Barrel Length (In.) | : | 1.29 |
| Maximum Voltage (kV) | : | 35 |
| Tongue Width (In.) | : | 1.54 |
| Base Material | : | Copper |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Overall Length (mm) | : | 70.6 |
| Tongue Angle | : | 45° |
| Stud Hole Size (In.) | : | 1/2 |
| Wire Strip Length (In.) | : | 1-3/8 |
| T & B Die Index Number | : | 76H |
| Number of Stud Holes | : | 1 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Class K Copper Flex Conductor Size | : | 350 kcmil |
| Class H Copper Flex Conductor Size | : | 350 kcmil |
| Class M Copper Flex Conductor Size | : | 350 kcmil |
| DLO Copper Flex Conductor Size | : | 373.7 kcmil |
| Class G Copper Flex Conductor Size | : | 350 kcmil |
| Class I Copper Flex Conductor Size | : | 350 kcmil |
Packaging Details | ||
| UPC | : | 07498343592 |
| GTIN Package | : | 00074983435920 |
| Standard Package Volume Ft3 | : | 0.0342 |
| Standard Package Weight Pounds | : | 2.2000 |
| Std Package Height In | : | 3.2 |
| Std Package Height MM | : | 81.28 |
| Std Package Length In | : | 5.6 |
| Std Package Length MM | : | 142.24 |
| Std Package Width In | : | 3.3 |
| Std Package Width MM | : | 83.82 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983435920 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
