Pan-Lug™ LCAX4/0-12-X Comp. Lug, 4/0, Flex, Tin Plt Copper, One 0.5" Stud, PK10
MFG #LCAX4/0-12-X
$21.30 / E
EACH
EACH
Product Description:

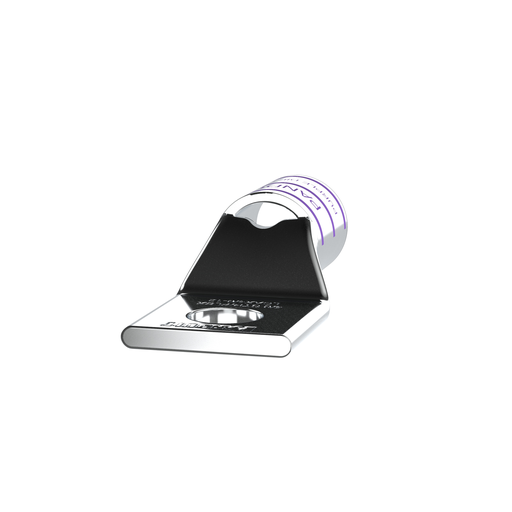

The LCAX4/0-12-X Copper Compression Connector Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
