Pan-Lug™ LCAX4/0-12F-X Comp. Lug, Flex, Tin Plt Copper, 90°, One 0.5" Stud, PK10
MFG #LCAX4/0-12F-X
$29.56 / E
EACH
EACH
Product Description:

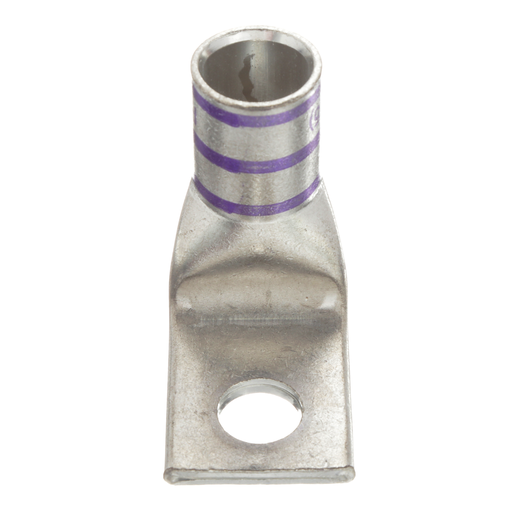

One-hole, flex lug, 4/0 AWG wire, 1/2 stud hole., 90° angle tongue.
HESCO Part Number
PANLCAX4/012FX
UPC
074983435661
Manufacturer Part Number
LCAX4/0-12F-X
Manufacturer
Panduit
Pan-Lug™ LCAX4/0-12F-X Comp. Lug, Flex, Tin Plt Copper, 90°, One 0.5" Stud, PK10
MFG #LCAX4/0-12F-X
Product Description:
One-hole, flex lug, 4/0 AWG wire, 1/2 stud hole., 90° angle tongue.
HESCO Part Number
PANLCAX4/012FX
UPC
074983435661
Manufacturer Part Number
LCAX4/0-12F-X
Manufacturer
Panduit
$29.56 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| Wire Strip Length (mm) | : | 26.9 |
| Tongue Width (In.) | : | 1.19 |
| Barrel Length (In.) | : | 1.03 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Maximum Voltage (kV) | : | 35 |
| Stud Hole Spacing (mm) | : | 0 |
| Tongue Angle | : | 90° |
| Tongue Type | : | Standard |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (In.) | : | 2.18 |
| Stud Hole Size (mm) | : | 12.7 |
| Finish/Coating | : | Tin-Plated |
| Tongue Width (mm) | : | 30.2 |
| Wire Strip Length (In.) | : | 1-1/16 |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Size (In.) | : | 1/2 |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Thickness (mm) | : | 4.1 |
| Barrel Length (mm) | : | 26.2 |
| Barrel Type | : | Standard |
| Product Type | : | Compression Lug |
| Panduit Die Index Number | : | P54 |
| Tongue Thickness (In.) | : | 0.16 |
| T & B Die Index Number | : | 54 |
| Color Code | : | Purple |
| Burndy Die Index Number | : | 15 |
| Overall Length (mm) | : | 55.4 |
| Number of Stud Holes | : | 1 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Class K Copper Flex Conductor Size | : | 4/0 AWG |
| Class G Copper Flex Conductor Size | : | 4/0 AWG |
| DLO Copper Flex Conductor Size | : | 4/0 AWG |
| Copper Conductor Size | : | 4/0 AWG |
| Class H Copper Flex Conductor Size | : | 4/0 AWG |
| Class I Copper Flex Conductor Size | : | 4/0 AWG |
| Class M Copper Flex Conductor Size | : | 4/0 AWG |
Packaging Details | ||
| UPC | : | 07498343566 |
| GTIN Package | : | 00074983435661 |
| Standard Package Volume Ft3 | : | 0.0328 |
| Standard Package Weight Pounds | : | 1.9560 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.45 |
| Std Package Width MM | : | 87.63 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983435661 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Installation Documents
Installation Documents 1
Part Drawings
Part Drawings 1
Product Bulletins
Product Bulletins 1
Videos
Installation Documents 1Part Drawings
Part Drawings 1Product Bulletins
Product Bulletins 1Videos
Videos 1
Videos 2
Videos 2
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Base Material : Copper Wire Strip Length (mm) : 26.9 Tongue Width (In.) : 1.19 Barrel Length (In.) : 1.03 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Maximum Voltage (kV) : 35 Stud Hole Spacing (mm) : 0 Tongue Angle : 90° Tongue Type : Standard Sub Brand : Pan-Lug™ Overall Length (In.) : 2.18 Stud Hole Size (mm) : 12.7 Finish/Coating : Tin-Plated Tongue Width (mm) : 30.2 Wire Strip Length (In.) : 1-1/16 CSA Temperature Rating (°C) : 90 Stud Hole Size (In.) : 1/2 UL Temperature Rating (°C) : 90 Tongue Thickness (mm) : 4.1 Barrel Length (mm) : 26.2 Barrel Type : Standard Product Type : Compression Lug Panduit Die Index Number : P54 Tongue Thickness (In.) : 0.16 T & B Die Index Number : 54 Color Code : Purple Burndy Die Index Number : 15 Overall Length (mm) : 55.4 Number of Stud Holes : 1 Inspection Window : Yes Barrel Entry : Beveled Class K Copper Flex Conductor Size : 4/0 AWG Class G Copper Flex Conductor Size : 4/0 AWG DLO Copper Flex Conductor Size : 4/0 AWG Copper Conductor Size : 4/0 AWG Class H Copper Flex Conductor Size : 4/0 AWG Class I Copper Flex Conductor Size : 4/0 AWG Class M Copper Flex Conductor Size : 4/0 AWG Packaging Details
UPC : 07498343566 GTIN Package : 00074983435661 Standard Package Volume Ft3 : 0.0328 Standard Package Weight Pounds : 1.9560 Std Package Height In : 3.4 Std Package Height MM : 86.36 Std Package Length In : 4.7 Std Package Length MM : 119.38 Std Package Width In : 3.45 Std Package Width MM : 87.63 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983435661 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation DocumentsInstallation Documents 1
Part DrawingsPart Drawings 1
Product BulletinsProduct Bulletins 1
Videos - Videos 1
Videos 2
