Pan-Lug™ LCB10-14W-L Copper Compression Connectors - Lugs
MFG #LCB10-14W-L
$4.74 / E
EACH
EACH
Product Description:

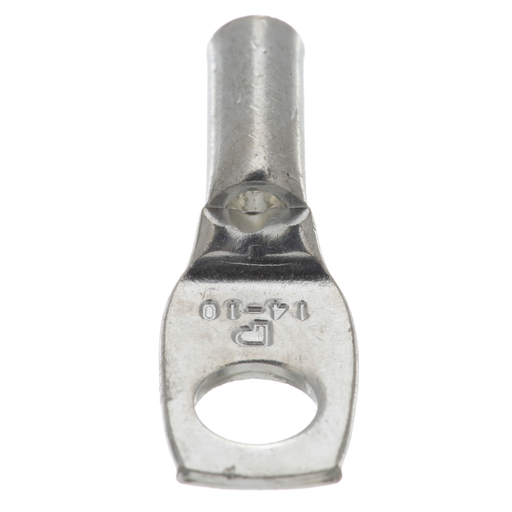

One-hole, long barrel lug with inspection window, #10 AWG wire, 1/4 stud hole.
HESCO Part Number
PANLCB1014WL
UPC
074983972128
Manufacturer Part Number
LCB10-14W-L
Manufacturer
Panduit
Pan-Lug™ LCB10-14W-L Copper Compression Connectors - Lugs
MFG #LCB10-14W-L
Product Description:
One-hole, long barrel lug with inspection window, #10 AWG wire, 1/4 stud hole.
HESCO Part Number
PANLCB1014WL
UPC
074983972128
Manufacturer Part Number
LCB10-14W-L
Manufacturer
Panduit
$4.74 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3
Packaging Details
| UPC | : | 07498397212 |
| GTIN Package | : | 00074983972128 |
| Standard Package Volume Ft3 | : | 0.0058 |
| Standard Package Weight Pounds | : | 0.4700 |
| Std Package Height In | : | .8 |
| Std Package Length In | : | 4 |
| Std Package Width In | : | 2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0231 |
| Standard Carton Weight Pounds | : | 1.8800 |
| Std Carton Height In | : | 5 |
| Std Carton Length In | : | 4 |
| Std Carton Width In | : | 2 |
| Std Ctn Qty | : | 200 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983972128 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Tongue Angle | : | Straight |
| Finish/Coating | : | Tin-Plated |
| Barrel Length (In.) | : | 0.53 |
| Barrel Type | : | Long |
| Tongue Type | : | Standard |
| Tongue Width (In.) | : | 0.42 |
| Wire Strip Length (mm) | : | 14.3 |
| Stud Hole Size (In.) | : | 1/4 |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 10.7 |
| Overall Length (In.) | : | 1.31 |
| Tongue Thickness (In.) | : | 0.05 |
| Overall Length (mm) | : | 33.3 |
| Stud Hole Size (mm) | : | 6.4 |
| Product Type | : | Compression Lug |
| Barrel Length (mm) | : | 13.5 |
| Maximum Voltage (kV) | : | 35 |
| Sub Brand | : | Pan-Lug™ |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Wire Strip Length (In.) | : | 9/16 |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Thickness (mm) | : | 1.3 |
| UL Temperature Rating (°C) | : | 90 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 1 |
| Copper Conductor Size | : | 10 AWG |
