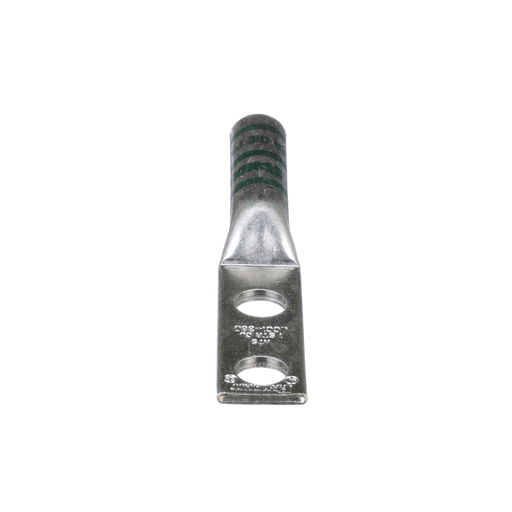

Pan-Lug™ LCC1-38D-E Copper Compression Connectors - Lugs
MFG #LCC1-38D-E
$19.33 / E
EACH
EACH
Product Description:
Two-hole, long barrel lug, #1 AWG wire, 3/8 stud hole, 1 hole spacing.
HESCO Part Number
PANLCC138DE
UPC
074983382439
Manufacturer Part Number
LCC1-38D-E
Manufacturer
Panduit
Pan-Lug™ LCC1-38D-E Copper Compression Connectors - Lugs
MFG #LCC1-38D-E
Product Description:
Two-hole, long barrel lug, #1 AWG wire, 3/8 stud hole, 1 hole spacing.
HESCO Part Number
PANLCC138DE
UPC
074983382439
Manufacturer Part Number
LCC1-38D-E
Manufacturer
Panduit
$19.33 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Angle | : | Straight |
| Tongue Type | : | Standard |
| Base Material | : | Copper |
| Wire Strip Length (In.) | : | 1-7/16 |
| Panduit Die Index Number | : | P37 |
| Stud Hole Size (mm) | : | 9.5 |
| Tongue Width (In.) | : | 0.7 |
| Tongue Thickness (In.) | : | 0.11 |
| T & B Die Index Number | : | 37 |
| Tongue Thickness (mm) | : | 2.8 |
| Tongue Width (mm) | : | 17.8 |
| UL Temperature Rating (°C) | : | 90 |
| Overall Length (In.) | : | 3.57 |
| Barrel Length (mm) | : | 34.5 |
| Wire Strip Length (mm) | : | 36.5 |
| Overall Length (mm) | : | 90.7 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Barrel Type | : | Long |
| Color Code | : | Green |
| Burndy Die Index Number | : | 11 |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Spacing (In.) | : | 1 |
| Maximum Voltage (kV) | : | 35 |
| Stud Hole Size (In.) | : | 3/8 |
| Barrel Length (In.) | : | 1.36 |
| CSA Temperature Rating (°C) | : | 90 |
| Sub Brand | : | Pan-Lug™ |
| Product Type | : | Compression Lug |
| Stud Hole Spacing (mm) | : | 25.4 |
| Number of Stud Holes | : | 2 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | No |
| Copper Conductor Size | : | 1 AWG |
Packaging Details | ||
| UPC | : | 07498338243 |
| GTIN Package | : | 00074983382439 |
| Standard Package Volume Ft3 | : | 0.0395 |
| Standard Package Weight Pounds | : | 1.6500 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 5.9 |
| Std Package Length MM | : | 149.86 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 20 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983382439 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Installation Documents
Installation Documents 1
Product Bulletins
Product Bulletins 1
Videos
Part Drawings
Part Drawings 1
Installation Documents 1Product Bulletins
Product Bulletins 1Videos
Part Drawings
Part Drawings 1Videos 1
Videos 2
Videos 2
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Tongue Angle : Straight Tongue Type : Standard Base Material : Copper Wire Strip Length (In.) : 1-7/16 Panduit Die Index Number : P37 Stud Hole Size (mm) : 9.5 Tongue Width (In.) : 0.7 Tongue Thickness (In.) : 0.11 T & B Die Index Number : 37 Tongue Thickness (mm) : 2.8 Tongue Width (mm) : 17.8 UL Temperature Rating (°C) : 90 Overall Length (In.) : 3.57 Barrel Length (mm) : 34.5 Wire Strip Length (mm) : 36.5 Overall Length (mm) : 90.7 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Barrel Type : Long Color Code : Green Burndy Die Index Number : 11 Finish/Coating : Tin-Plated Stud Hole Spacing (In.) : 1 Maximum Voltage (kV) : 35 Stud Hole Size (In.) : 3/8 Barrel Length (In.) : 1.36 CSA Temperature Rating (°C) : 90 Sub Brand : Pan-Lug™ Product Type : Compression Lug Stud Hole Spacing (mm) : 25.4 Number of Stud Holes : 2 Barrel Entry : Beveled Inspection Window : No Copper Conductor Size : 1 AWG Packaging Details
UPC : 07498338243 GTIN Package : 00074983382439 Standard Package Volume Ft3 : 0.0395 Standard Package Weight Pounds : 1.6500 Std Package Height In : 3.4 Std Package Height MM : 86.36 Std Package Length In : 5.9 Std Package Length MM : 149.86 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 20 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983382439 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation DocumentsInstallation Documents 1
Product BulletinsProduct Bulletins 1
Videos
Part DrawingsPart Drawings 1 - Videos 1
Videos 2
