CuLugLBW,2Hole,#1AWG,3/8,1,1PKG20
MFG #LCC1-38DW-E
$20.29 / E
EACH
EACH
Product Description:

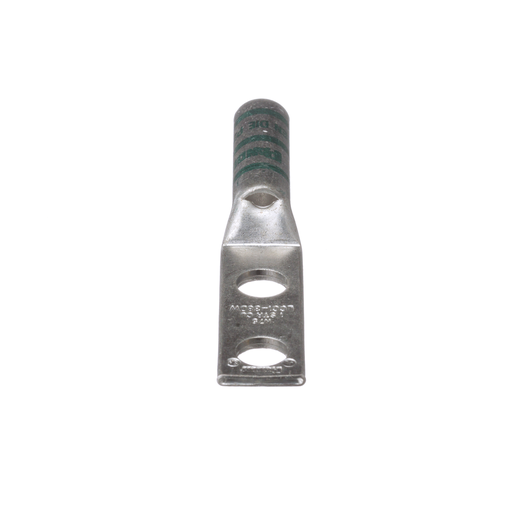

Two-hole, long barrel lug with window, #1 AWG wire, 3/8 stud hole, 1 hole spacing.
HESCO Part Number
PANLCC138DWE
UPC
074983798025
Manufacturer Part Number
LCC1-38DW-E
Manufacturer
Panduit
CuLugLBW,2Hole,#1AWG,3/8,1,1PKG20
MFG #LCC1-38DW-E
Product Description:
Two-hole, long barrel lug with window, #1 AWG wire, 3/8 stud hole, 1 hole spacing.
HESCO Part Number
PANLCC138DWE
UPC
074983798025
Manufacturer Part Number
LCC1-38DW-E
Manufacturer
Panduit
$20.29 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| T & B Die Index Number | : | 37 |
| Burndy Die Index Number | : | 11 |
| Tongue Angle | : | Straight |
| Wire Strip Length (mm) | : | 36.5 |
| Product Type | : | Compression Lug |
| Stud Hole Size (mm) | : | 9.5 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Finish/Coating | : | Tin-Plated |
| Sub Brand | : | Pan-Lug™ |
| Stud Hole Spacing (mm) | : | 25.4 |
| Wire Strip Length (In.) | : | 1-7/16 |
| Tongue Width (In.) | : | 0.7 |
| UL Temperature Rating (°C) | : | 90 |
| Base Material | : | Copper |
| Stud Hole Size (In.) | : | 3/8 |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Type | : | Standard |
| Stud Hole Spacing (In.) | : | 1 |
| Barrel Length (In.) | : | 1.36 |
| Color Code | : | Green |
| Barrel Type | : | Long |
| Overall Length (In.) | : | 3.46 |
| Barrel Length (mm) | : | 34.5 |
| Tongue Width (mm) | : | 17.8 |
| Tongue Thickness (mm) | : | 2.8 |
| Tongue Thickness (In.) | : | 0.11 |
| Maximum Voltage (kV) | : | 35 |
| Overall Length (mm) | : | 87.9 |
| Panduit Die Index Number | : | P37 |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 1 AWG |
Packaging Details | ||
| UPC | : | 07498379802 |
| GTIN Package | : | 00074983798025 |
| Standard Package Volume Ft3 | : | 0.0377 |
| Standard Package Weight Pounds | : | 1.6000 |
| Std Package Height In | : | 3.55 |
| Std Package Height MM | : | 90.17 |
| Std Package Length In | : | 5.8 |
| Std Package Length MM | : | 147.32 |
| Std Package Width In | : | 3.5 |
| Std Package Width MM | : | 88.9 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 20 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983798025 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 20.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
