CuLugLBW,2Hole,#10AWG,1/4,.63,90°PKG50
MFG #LCC10-14AWF-L
$22.98 / E
EACH
EACH
Product Description:

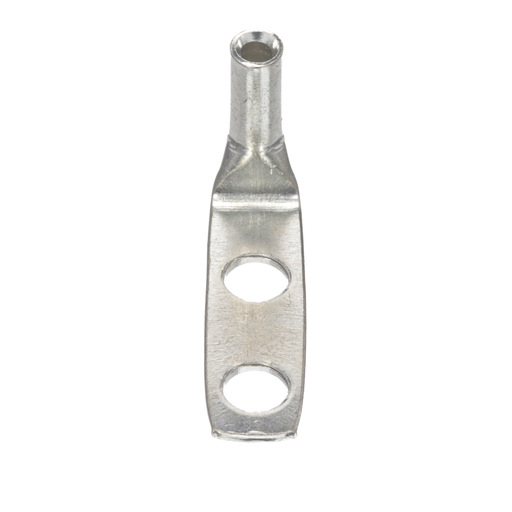

Two-hole, long barrel lug with window, #10 AWG wire, 1/4 stud hole, .63 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCC1014AWFL
UPC
074983973842
Manufacturer Part Number
LCC10-14AWF-L
Manufacturer
Panduit
CuLugLBW,2Hole,#10AWG,1/4,.63,90°PKG50
MFG #LCC10-14AWF-L
Product Description:
Two-hole, long barrel lug with window, #10 AWG wire, 1/4 stud hole, .63 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCC1014AWFL
UPC
074983973842
Manufacturer Part Number
LCC10-14AWF-L
Manufacturer
Panduit
$22.98 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Packaging Details
| UPC | : | 07498397384 |
| GTIN Package | : | 00074983973842 |
| Standard Package Volume Ft3 | : | 0.0095 |
| Standard Package Weight Pounds | : | 0.5500 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.1 |
| Std Package Length MM | : | 104.14 |
| Std Package Width In | : | 2.1 |
| Std Package Width MM | : | 53.34 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983973842 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Voltage (kV) | : | 35 |
| Tongue Width (In.) | : | 0.42 |
| Tongue Width (mm) | : | 10.7 |
| Tongue Thickness (In.) | : | 0.05 |
| Stud Hole Spacing (In.) | : | 5/8 |
| Overall Length (mm) | : | 39.6 |
| Product Type | : | Compression Lug |
| Finish/Coating | : | Tin-Plated |
| Overall Length (In.) | : | 1.56 |
| Stud Hole Spacing (mm) | : | 16 |
| Tongue Thickness (mm) | : | 1.3 |
| Barrel Type | : | Long |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Angle | : | 90° |
| Sub Brand | : | Pan-Lug™ |
| Wire Strip Length (In.) | : | 9/16 |
| Stud Hole Size (In.) | : | 1/4 |
| Barrel Length (In.) | : | 0.53 |
| Tongue Type | : | Standard |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Barrel Length (mm) | : | 13.5 |
| Wire Strip Length (mm) | : | 14.3 |
| Stud Hole Size (mm) | : | 6.4 |
| CSA Temperature Rating (°C) | : | 90 |
| Base Material | : | Copper |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 2 |
| Barrel Entry | : | Beveled |
| Copper Conductor Size | : | 10 AWG |
