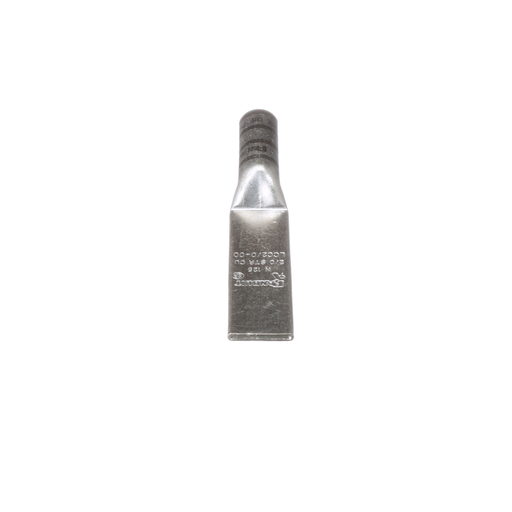

CuLug,Blank,2/0AWG,Long,PKG10
MFG #LCC2/0-00-X
$21.69 / E
EACH
EACH
Product Description:
Blank tongue, long barrel lug, 2/0 AWG wire.
HESCO Part Number
PANLCC2000X
UPC
074983902026
Manufacturer Part Number
LCC2/0-00-X
Manufacturer
Panduit
CuLug,Blank,2/0AWG,Long,PKG10
MFG #LCC2/0-00-X
Product Description:
Blank tongue, long barrel lug, 2/0 AWG wire.
HESCO Part Number
PANLCC2000X
UPC
074983902026
Manufacturer Part Number
LCC2/0-00-X
Manufacturer
Panduit
$21.69 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164
Packaging Details
| UPC | : | 07498390202 |
| GTIN Package | : | 00074983902026 |
| Standard Package Volume Ft3 | : | 0.0513 |
| Standard Package Weight Pounds | : | 1.8000 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 7.9 |
| Std Package Length MM | : | 200.66 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983902026 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| T & B Die Index Number | : | 45 |
| Tongue Angle | : | Straight |
| Stud Hole Spacing (In.) | : | 0 |
| Tongue Thickness (In.) | : | 0.13 |
| Stud Hole Size (In.) | : | 0 |
| CSA Temperature Rating (°C) | : | 90 |
| Barrel Type | : | Long |
| Color Code | : | Black |
| Panduit Die Index Number | : | P45 |
| Product Type | : | Compression Lug |
| Wire Strip Length (In.) | : | 1-9/16 |
| Tongue Type | : | Standard |
| Overall Length (mm) | : | 126.5 |
| Maximum Voltage (kV) | : | 35 |
| Barrel Length (In.) | : | 1.5 |
| Tongue Width (In.) | : | 0.85 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Size (mm) | : | 0 |
| Burndy Die Index Number | : | 13 |
| Base Material | : | Copper |
| Tongue Thickness (mm) | : | 3.3 |
| UL Temperature Rating (°C) | : | 90 |
| Finish/Coating | : | Tin-Plated |
| Sub Brand | : | Pan-Lug™ |
| Barrel Length (mm) | : | 38.1 |
| Wire Strip Length (mm) | : | 39.7 |
| Overall Length (In.) | : | 4.98 |
| Tongue Width (mm) | : | 21.6 |
| Inspection Window | : | No |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 0 |
| Copper Conductor Size | : | 2/0 AWG |
