CuLugLBW,2Hole,2/0AWG,1/4,.75PKG10
MFG #LCC2/0-14BW-X
$19.85 / E
EACH
EACH
Product Description:

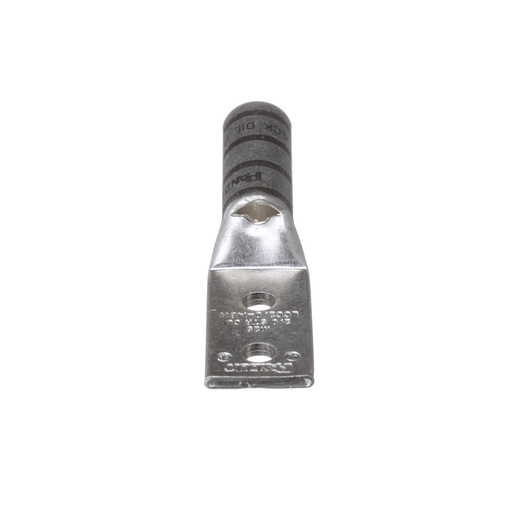

Two-hole, long barrel lug with window, 2/0 AWG wire, 1/4 stud hole, .75 hole spacing.
HESCO Part Number
PANLCC2014BWX
UPC
074983798179
Manufacturer Part Number
LCC2/0-14BW-X
Manufacturer
Panduit
CuLugLBW,2Hole,2/0AWG,1/4,.75PKG10
MFG #LCC2/0-14BW-X
Product Description:
Two-hole, long barrel lug with window, 2/0 AWG wire, 1/4 stud hole, .75 hole spacing.
HESCO Part Number
PANLCC2014BWX
UPC
074983798179
Manufacturer Part Number
LCC2/0-14BW-X
Manufacturer
Panduit
$19.85 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 85.3 |
| Product Type | : | Compression Lug |
| Barrel Type | : | Long |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tongue Angle | : | Straight |
| Stud Hole Size (In.) | : | 1/4 |
| Barrel Length (mm) | : | 38.1 |
| Panduit Die Index Number | : | P45 |
| CSA Temperature Rating (°C) | : | 90 |
| Color Code | : | Black |
| Wire Strip Length (mm) | : | 39.7 |
| Sub Brand | : | Pan-Lug™ |
| Burndy Die Index Number | : | 13 |
| Stud Hole Spacing (In.) | : | 3/4 |
| UL Temperature Rating (°C) | : | 90 |
| Maximum Voltage (kV) | : | 35 |
| Tongue Width (mm) | : | 21.6 |
| Tongue Width (In.) | : | 0.85 |
| Tongue Thickness (mm) | : | 3.3 |
| Overall Length (In.) | : | 3.36 |
| Base Material | : | Copper |
| Wire Strip Length (In.) | : | 1-9/16 |
| Tongue Thickness (In.) | : | 0.13 |
| Stud Hole Spacing (mm) | : | 19.1 |
| Barrel Length (In.) | : | 1.5 |
| T & B Die Index Number | : | 45 |
| Tongue Type | : | Standard |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Size (mm) | : | 6.4 |
| Number of Stud Holes | : | 2 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 2/0 AWG |
Packaging Details | ||
| UPC | : | 07498379817 |
| GTIN Package | : | 00074983798179 |
| Standard Package Volume Ft3 | : | 0.0377 |
| Standard Package Weight Pounds | : | 1.2000 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 5.8 |
| Std Package Length MM | : | 147.32 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983798179 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Overall Length (mm) : 85.3 Product Type : Compression Lug Barrel Type : Long Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tongue Angle : Straight Stud Hole Size (In.) : 1/4 Barrel Length (mm) : 38.1 Panduit Die Index Number : P45 CSA Temperature Rating (°C) : 90 Color Code : Black Wire Strip Length (mm) : 39.7 Sub Brand : Pan-Lug™ Burndy Die Index Number : 13 Stud Hole Spacing (In.) : 3/4 UL Temperature Rating (°C) : 90 Maximum Voltage (kV) : 35 Tongue Width (mm) : 21.6 Tongue Width (In.) : 0.85 Tongue Thickness (mm) : 3.3 Overall Length (In.) : 3.36 Base Material : Copper Wire Strip Length (In.) : 1-9/16 Tongue Thickness (In.) : 0.13 Stud Hole Spacing (mm) : 19.1 Barrel Length (In.) : 1.5 T & B Die Index Number : 45 Tongue Type : Standard Finish/Coating : Tin-Plated Stud Hole Size (mm) : 6.4 Number of Stud Holes : 2 Barrel Entry : Beveled Inspection Window : Yes Copper Conductor Size : 2/0 AWG Packaging Details
UPC : 07498379817 GTIN Package : 00074983798179 Standard Package Volume Ft3 : 0.0377 Standard Package Weight Pounds : 1.2000 Std Package Height In : 3.3 Std Package Height MM : 83.82 Std Package Length In : 5.8 Std Package Length MM : 147.32 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983798179 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 10.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation Documents
