CuLugLBW,2Hole,#2AWG,5/16,.75,90°PKG25
MFG #LCC2-56BWF-Q
$22.31 / E
EACH
EACH
Product Description:

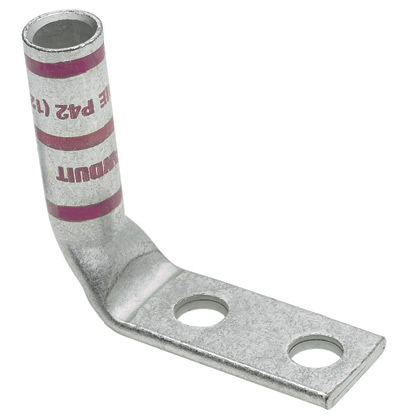

Two-hole, long barrel lug with window, #2 AWG wire, 5/16 stud hole, .75 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCC256BWFQ
UPC
074983806829
Manufacturer Part Number
LCC2-56BWF-Q
Manufacturer
Panduit
CuLugLBW,2Hole,#2AWG,5/16,.75,90°PKG25
MFG #LCC2-56BWF-Q
Product Description:
Two-hole, long barrel lug with window, #2 AWG wire, 5/16 stud hole, .75 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCC256BWFQ
UPC
074983806829
Manufacturer Part Number
LCC2-56BWF-Q
Manufacturer
Panduit
$22.31 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Thickness (mm) | : | 2.5 |
| Tongue Type | : | Standard |
| Stud Hole Size (mm) | : | 7.9 |
| Maximum Voltage (kV) | : | 35 |
| Stud Hole Spacing (mm) | : | 19.1 |
| Barrel Type | : | Long |
| Finish/Coating | : | Tin-Plated |
| T & B Die Index Number | : | 33 |
| Tongue Width (mm) | : | 16.8 |
| CSA Temperature Rating (°C) | : | 90 |
| Burndy Die Index Number | : | 10 |
| Panduit Die Index Number | : | P33 |
| Overall Length (In.) | : | 2.11 |
| Barrel Length (In.) | : | 1.16 |
| Sub Brand | : | Pan-Lug™ |
| Tongue Angle | : | 90° |
| Tongue Thickness (In.) | : | 0.1 |
| Tongue Width (In.) | : | 0.66 |
| Product Type | : | Compression Lug |
| Color Code | : | Brown |
| Barrel Length (mm) | : | 29.5 |
| Wire Strip Length (mm) | : | 31.8 |
| Wire Strip Length (In.) | : | 1-1/4 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Overall Length (mm) | : | 53.6 |
| Stud Hole Size (In.) | : | 5/16 |
| Stud Hole Spacing (In.) | : | 3/4 |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 2 AWG |
Packaging Details | ||
| UPC | : | 07498380682 |
| GTIN Package | : | 00074983806829 |
| Standard Package Volume Ft3 | : | 0.0370 |
| Standard Package Weight Pounds | : | 1.5500 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 5.7 |
| Std Package Length MM | : | 144.78 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983806829 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 25.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Base Material : Copper UL Temperature Rating (°C) : 90 Tongue Thickness (mm) : 2.5 Tongue Type : Standard Stud Hole Size (mm) : 7.9 Maximum Voltage (kV) : 35 Stud Hole Spacing (mm) : 19.1 Barrel Type : Long Finish/Coating : Tin-Plated T & B Die Index Number : 33 Tongue Width (mm) : 16.8 CSA Temperature Rating (°C) : 90 Burndy Die Index Number : 10 Panduit Die Index Number : P33 Overall Length (In.) : 2.11 Barrel Length (In.) : 1.16 Sub Brand : Pan-Lug™ Tongue Angle : 90° Tongue Thickness (In.) : 0.1 Tongue Width (In.) : 0.66 Product Type : Compression Lug Color Code : Brown Barrel Length (mm) : 29.5 Wire Strip Length (mm) : 31.8 Wire Strip Length (In.) : 1-1/4 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Overall Length (mm) : 53.6 Stud Hole Size (In.) : 5/16 Stud Hole Spacing (In.) : 3/4 Barrel Entry : Beveled Number of Stud Holes : 2 Inspection Window : Yes Copper Conductor Size : 2 AWG Packaging Details
UPC : 07498380682 GTIN Package : 00074983806829 Standard Package Volume Ft3 : 0.0370 Standard Package Weight Pounds : 1.5500 Std Package Height In : 3.3 Std Package Height MM : 83.82 Std Package Length In : 5.7 Std Package Length MM : 144.78 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 25 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983806829 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 25.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1
Installation DocumentsInstallation Documents 1
