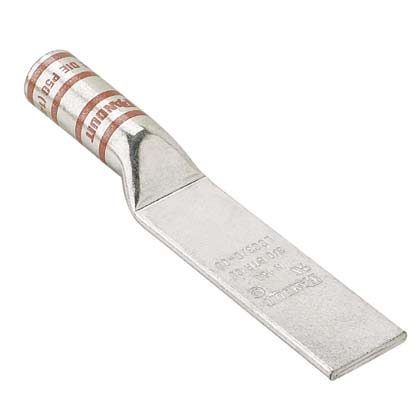

Pan-Lug™ LCC250-00-X Compression Connectors - Lugs
MFG #LCC250-00-X
$32.44 / E
EACH
EACH
Product Description:
Blank tongue, long barrel lug, 250 kcmil cable.
HESCO Part Number
PANLCC25000X
UPC
074983902088
Manufacturer Part Number
LCC250-00-X
Manufacturer
Panduit
Pan-Lug™ LCC250-00-X Compression Connectors - Lugs
MFG #LCC250-00-X
Product Description:
Blank tongue, long barrel lug, 250 kcmil cable.
HESCO Part Number
PANLCC25000X
UPC
074983902088
Manufacturer Part Number
LCC250-00-X
Manufacturer
Panduit
$32.44 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164
Packaging Details
| UPC | : | 07498390208 |
| GTIN Package | : | 00074983902088 |
| Standard Package Volume Ft3 | : | 0.0489 |
| Standard Package Weight Pounds | : | 2.8000 |
| Std Package Height In | : | 3.2 |
| Std Package Height MM | : | 81.28 |
| Std Package Length In | : | 8 |
| Std Package Length MM | : | 203.2 |
| Std Package Width In | : | 3.3 |
| Std Package Width MM | : | 83.82 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983902088 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Length (In.) | : | 1.6 |
| Stud Hole Size (mm) | : | 0 |
| Product Type | : | Compression Lug |
| Tongue Angle | : | Straight |
| UL Temperature Rating (°C) | : | 90 |
| Sub Brand | : | Pan-Lug™ |
| Stud Hole Size (In.) | : | 0 |
| Stud Hole Spacing (In.) | : | 0 |
| Wire Strip Length (In.) | : | 1-11/16 |
| Tongue Thickness (In.) | : | 0.14 |
| Burndy Die Index Number | : | 16 |
| Overall Length (In.) | : | 5.23 |
| Barrel Length (mm) | : | 40.6 |
| Base Material | : | Copper |
| Maximum Voltage (kV) | : | 35 |
| Tongue Thickness (mm) | : | 3.6 |
| Color Code | : | Yellow |
| T & B Die Index Number | : | 62 |
| Barrel Type | : | Long |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Width (In.) | : | 1.17 |
| Panduit Die Index Number | : | P62 |
| Wire Strip Length (mm) | : | 42.9 |
| Tongue Type | : | Standard |
| Finish/Coating | : | Tin-Plated |
| Overall Length (mm) | : | 132.8 |
| Tongue Width (mm) | : | 29.7 |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 0 |
| Inspection Window | : | No |
| Copper Conductor Size | : | 250 kcmil |
