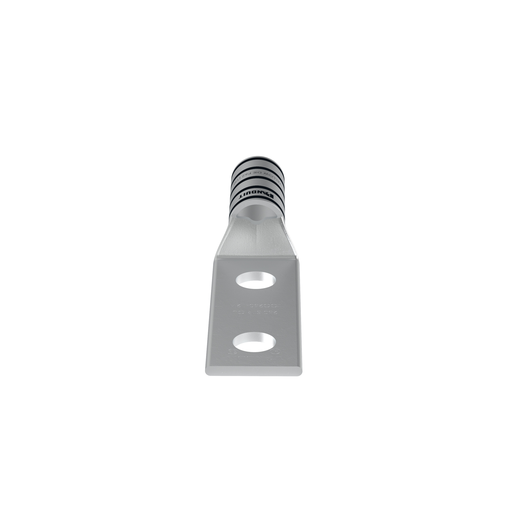

Pan-Lug™ LCC250-12W-X Comp. Lug, 250, Window, Tin Plt Copper, Strt, Two .5" Stud
MFG #LCC250-12W-X
$33.68 / E
EACH
EACH
Product Description:
The LCC250-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC25012WX
UPC
074983798360
Manufacturer Part Number
LCC250-12W-X
Manufacturer
Panduit
Pan-Lug™ LCC250-12W-X Comp. Lug, 250, Window, Tin Plt Copper, Strt, Two .5" Stud
MFG #LCC250-12W-X
Product Description:
The LCC250-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC25012WX
UPC
074983798360
Manufacturer Part Number
LCC250-12W-X
Manufacturer
Panduit
$33.68 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
- No
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Width (In.) | : | 1.17 |
| Tongue Angle | : | Straight |
| Overall Length (In.) | : | 5.03 |
| Stud Hole Size (mm) | : | 12.7 |
| UL Temperature Rating (°C) | : | 90 |
| Base Material | : | Copper |
| Wire Strip Length (mm) | : | 42.9 |
| Barrel Length (In.) | : | 1.61 |
| Product Type | : | Compression Lug |
| Color Code | : | Yellow |
| Barrel Length (mm) | : | 40.9 |
| Tongue Thickness (mm) | : | 3.6 |
| Stud Hole Size (In.) | : | 1/2 |
| Tongue Type | : | Standard |
| Tongue Width (mm) | : | 29.7 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Spacing (In.) | : | 1-3/4 |
| Panduit Die Index Number | : | P62 |
| Burndy Die Index Number | : | 16 |
| Tongue Thickness (In.) | : | 0.14 |
| Stud Hole Spacing (mm) | : | 44.5 |
| Wire Strip Length (In.) | : | 1-11/16 |
| Finish/Coating | : | Tin-Plated |
| Overall Length (mm) | : | 127.8 |
| CSA Temperature Rating (°C) | : | 90 |
| T & B Die Index Number | : | 62 |
| Maximum Voltage (kV) | : | 35 |
| Barrel Type | : | Long |
| Sub Brand | : | Pan-Lug™ |
| Number of Stud Holes | : | 2 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 250 kcmil |
Packaging Details | ||
| UPC | : | 07498379836 |
| GTIN Package | : | 00074983798360 |
| Standard Package Volume Ft3 | : | 0.0506 |
| Standard Package Weight Pounds | : | 2.5000 |
| Std Package Height In | : | 3.35 |
| Std Package Height MM | : | 85.09 |
| Std Package Length In | : | 7.8 |
| Std Package Length MM | : | 198.12 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983798360 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
