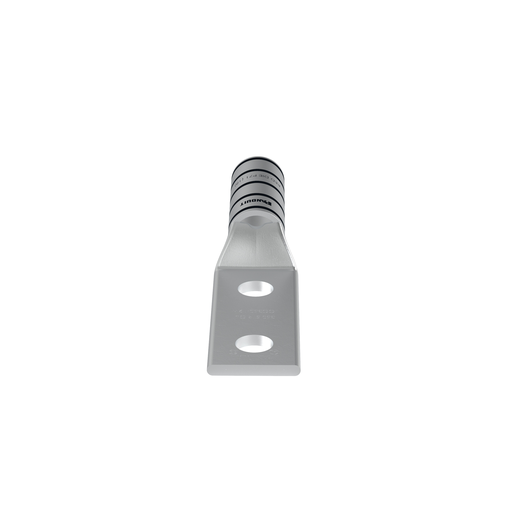

Pan-Lug™ LCC350-12W-X Comp. Lug, 350, Window, Tin Plt Copper, Strt, Two .5" Stud
MFG #LCC350-12W-X
$42.96 / E
EACH
EACH
Product Description:
The LCC350-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC35012WX
UPC
074983798438
Manufacturer Part Number
LCC350-12W-X
Manufacturer
Panduit
Pan-Lug™ LCC350-12W-X Comp. Lug, 350, Window, Tin Plt Copper, Strt, Two .5" Stud
MFG #LCC350-12W-X
Product Description:
The LCC350-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC35012WX
UPC
074983798438
Manufacturer Part Number
LCC350-12W-X
Manufacturer
Panduit
$42.96 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Size (In.) | : | 1/2 |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Width (mm) | : | 32.5 |
| Color Code | : | Red |
| Finish/Coating | : | Tin-Plated |
| Tongue Thickness (In.) | : | 0.17 |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Size (mm) | : | 12.7 |
| Burndy Die Index Number | : | 18 |
| Stud Hole Spacing (mm) | : | 44.5 |
| Panduit Die Index Number | : | P71 |
| Tongue Angle | : | Straight |
| Wire Strip Length (mm) | : | 58.7 |
| Base Material | : | Copper |
| Barrel Length (mm) | : | 56.9 |
| Barrel Type | : | Long |
| Tongue Width (In.) | : | 1.28 |
| Product Type | : | Compression Lug |
| Maximum Voltage (kV) | : | 35 |
| Barrel Length (In.) | : | 2.24 |
| Sub Brand | : | Pan-Lug™ |
| Stud Hole Spacing (In.) | : | 1-3/4 |
| T & B Die Index Number | : | 71 |
| Tongue Thickness (mm) | : | 4.3 |
| Overall Length (mm) | : | 146.3 |
| Overall Length (In.) | : | 5.76 |
| Wire Strip Length (In.) | : | 2-5/16 |
| Tongue Type | : | Standard |
| Number of Stud Holes | : | 2 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 350 kcmil |
Packaging Details | ||
| UPC | : | 07498379843 |
| GTIN Package | : | 00074983798438 |
| Standard Package Volume Ft3 | : | 0.0506 |
| Standard Package Weight Pounds | : | 3.9500 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 7.85 |
| Std Package Length MM | : | 199.39 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983798438 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
