LGLug,4/0AWG,.5in,1.75in,45°,NoWDW,PK10
MFG #LCC4/0-12H-X
$37.47 / E
EACH
EACH
Product Description:

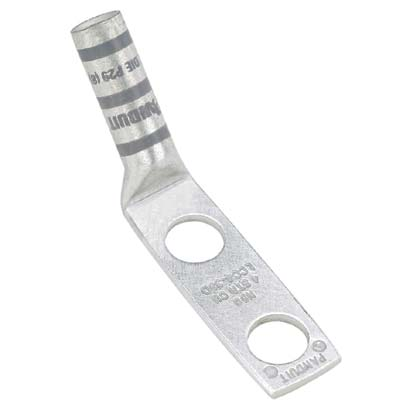

Two-hole, long barrel lug, 4/0 AWG wire, 1/2 stud hole, 1 3/4 hole spacing, 45° angle tongue.
HESCO Part Number
PANLCC4012HX
UPC
074983901913
Manufacturer Part Number
LCC4/0-12H-X
Manufacturer
Panduit
LGLug,4/0AWG,.5in,1.75in,45°,NoWDW,PK10
MFG #LCC4/0-12H-X
Product Description:
Two-hole, long barrel lug, 4/0 AWG wire, 1/2 stud hole, 1 3/4 hole spacing, 45° angle tongue.
HESCO Part Number
PANLCC4012HX
UPC
074983901913
Manufacturer Part Number
LCC4/0-12H-X
Manufacturer
Panduit
$37.47 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 116.3 |
| Finish/Coating | : | Tin-Plated |
| Sub Brand | : | Pan-Lug™ |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| T & B Die Index Number | : | 54 |
| Tongue Width (In.) | : | 1.06 |
| Overall Length (In.) | : | 4.58 |
| Tongue Type | : | Standard |
| Wire Strip Length (In.) | : | 1-5/8 |
| Tongue Angle | : | 45° |
| Barrel Type | : | Long |
| Panduit Die Index Number | : | P54 |
| Wire Strip Length (mm) | : | 41.3 |
| Color Code | : | Purple |
| Stud Hole Spacing (In.) | : | 1-3/4 |
| Tongue Thickness (In.) | : | 0.14 |
| Burndy Die Index Number | : | 15 |
| Stud Hole Spacing (mm) | : | 44.5 |
| Stud Hole Size (mm) | : | 12.7 |
| Barrel Length (In.) | : | 1.56 |
| Tongue Width (mm) | : | 26.9 |
| Tongue Thickness (mm) | : | 3.6 |
| Product Type | : | Compression Lug |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Size (In.) | : | 1/2 |
| Base Material | : | Copper |
| Maximum Voltage (kV) | : | 35 |
| Barrel Length (mm) | : | 39.6 |
| UL Temperature Rating (°C) | : | 90 |
| Inspection Window | : | No |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Copper Conductor Size | : | 4/0 AWG |
Packaging Details | ||
| UPC | : | 07498390191 |
| GTIN Package | : | 00074983901913 |
| Standard Package Volume Ft3 | : | 0.0528 |
| Standard Package Weight Pounds | : | 2.3400 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 7.9 |
| Std Package Length MM | : | 200.66 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983901913 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Overall Length (mm) : 116.3 Finish/Coating : Tin-Plated Sub Brand : Pan-Lug™ Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V T & B Die Index Number : 54 Tongue Width (In.) : 1.06 Overall Length (In.) : 4.58 Tongue Type : Standard Wire Strip Length (In.) : 1-5/8 Tongue Angle : 45° Barrel Type : Long Panduit Die Index Number : P54 Wire Strip Length (mm) : 41.3 Color Code : Purple Stud Hole Spacing (In.) : 1-3/4 Tongue Thickness (In.) : 0.14 Burndy Die Index Number : 15 Stud Hole Spacing (mm) : 44.5 Stud Hole Size (mm) : 12.7 Barrel Length (In.) : 1.56 Tongue Width (mm) : 26.9 Tongue Thickness (mm) : 3.6 Product Type : Compression Lug CSA Temperature Rating (°C) : 90 Stud Hole Size (In.) : 1/2 Base Material : Copper Maximum Voltage (kV) : 35 Barrel Length (mm) : 39.6 UL Temperature Rating (°C) : 90 Inspection Window : No Barrel Entry : Beveled Number of Stud Holes : 2 Copper Conductor Size : 4/0 AWG Packaging Details
UPC : 07498390191 GTIN Package : 00074983901913 Standard Package Volume Ft3 : 0.0528 Standard Package Weight Pounds : 2.3400 Std Package Height In : 3.4 Std Package Height MM : 86.36 Std Package Length In : 7.9 Std Package Length MM : 200.66 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983901913 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 10.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
