Pan-Lug™ LCC400-12-6 Comp. Lug, 400, Tin Plt Copper, Strt, Two 1/2" Stud, PK6
MFG #LCC400-12-6
$41.89 / E
EACH
EACH
Product Description:

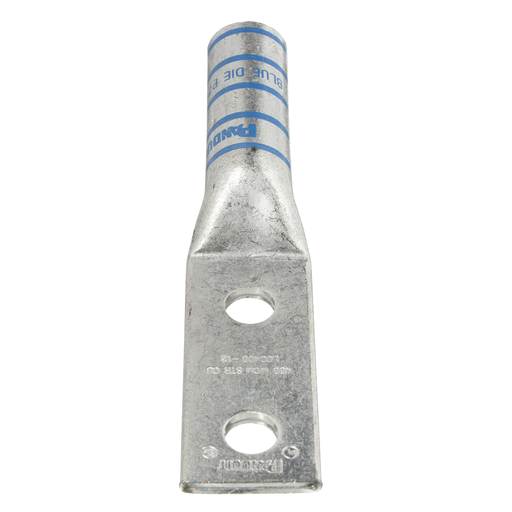

The LCC400-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC400126
UPC
074983902606
Manufacturer Part Number
LCC400-12-6
Manufacturer
Panduit
Pan-Lug™ LCC400-12-6 Comp. Lug, 400, Tin Plt Copper, Strt, Two 1/2" Stud, PK6
MFG #LCC400-12-6
Product Description:
The LCC400-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC400126
UPC
074983902606
Manufacturer Part Number
LCC400-12-6
Manufacturer
Panduit
$41.89 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
- No
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Wire Strip Length (In.) | : | 2-3/8 |
| Color Code | : | Blue |
| Tongue Angle | : | Straight |
| Tongue Thickness (mm) | : | 4.6 |
| Burndy Die Index Number | : | 19 |
| Stud Hole Spacing (In.) | : | 1-3/4 |
| Stud Hole Spacing (mm) | : | 44.5 |
| Tongue Type | : | Standard |
| Stud Hole Size (mm) | : | 12.7 |
| Product Type | : | Compression Lug |
| Tongue Width (In.) | : | 1.39 |
| T & B Die Index Number | : | 76 |
| Tongue Thickness (In.) | : | 0.18 |
| Barrel Length (In.) | : | 2.3 |
| Barrel Type | : | Long |
| Maximum Voltage (kV) | : | 35 |
| UL Temperature Rating (°C) | : | 90 |
| Panduit Die Index Number | : | P76 |
| Overall Length (mm) | : | 154.9 |
| Barrel Length (mm) | : | 58.4 |
| Overall Length (In.) | : | 6.1 |
| Base Material | : | Copper |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Size (In.) | : | 1/2 |
| CSA Temperature Rating (°C) | : | 90 |
| Sub Brand | : | Pan-Lug™ |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tongue Width (mm) | : | 35.3 |
| Wire Strip Length (mm) | : | 60.3 |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Inspection Window | : | No |
| Copper Conductor Size | : | 400 kcmil |
Packaging Details | ||
| UPC | : | 07498390260 |
| GTIN Package | : | 00074983902606 |
| Standard Package Volume Ft3 | : | 0.0528 |
| Standard Package Weight Pounds | : | 2.9598 |
| Std Package Height In | : | 3.45 |
| Std Package Height MM | : | 87.63 |
| Std Package Length In | : | 7.7 |
| Std Package Length MM | : | 195.58 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983902606 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
