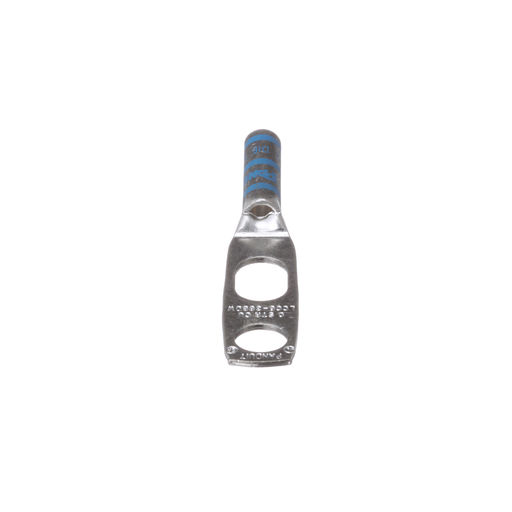

Pan-Lug™ LCC6-38BDW-L Comp. Lug, 6, Tin Plt Copper, Strt, Two 3/8" Stud, PK50
MFG #LCC6-38BDW-L
$13.30 / E
EACH
EACH
Product Description:
The LCC6-38BDW-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC638BDWL
UPC
074983345106
Manufacturer Part Number
LCC6-38BDW-L
Manufacturer
Panduit
Pan-Lug™ LCC6-38BDW-L Comp. Lug, 6, Tin Plt Copper, Strt, Two 3/8" Stud, PK50
MFG #LCC6-38BDW-L
Product Description:
The LCC6-38BDW-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCC638BDWL
UPC
074983345106
Manufacturer Part Number
LCC6-38BDW-L
Manufacturer
Panduit
$13.30 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
- No
Packaging Details
| UPC | : | 07498334510 |
| GTIN Package | : | 00074983345106 |
| Standard Package Volume Ft3 | : | 0.0528 |
| Standard Package Weight Pounds | : | 1.7200 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 7.7 |
| Std Package Length MM | : | 195.58 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983345106 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Length (In.) | : | 1.07 |
| Tongue Thickness (In.) | : | 0.06 |
| Tongue Thickness (mm) | : | 1.5 |
| Tongue Angle | : | Straight |
| Stud Hole Size (mm) | : | 9.5 |
| Overall Length (mm) | : | 78.3 |
| Product Type | : | Compression Lug |
| Overall Length (In.) | : | 3.08 |
| CSA Temperature Rating (°C) | : | 90 |
| Finish/Coating | : | Tin-Plated |
| Barrel Type | : | Long |
| Barrel Length (mm) | : | 27.2 |
| Sub Brand | : | Pan-Lug™ |
| Tongue Width (In.) | : | 0.62 |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Width (mm) | : | 15.7 |
| Tongue Type | : | Standard |
| Stud Hole Spacing (In.) | : | 1 |
| T & B Die Index Number | : | 24 |
| Color Code | : | Blue |
| Wire Strip Length (In.) | : | 1-1/8 |
| Burndy Die Index Number | : | 7 |
| Panduit Die Index Number | : | P24 |
| Stud Hole Spacing (mm) | : | 25.4 |
| Base Material | : | Copper |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Wire Strip Length (mm) | : | 28.6 |
| Stud Hole Size (In.) | : | 3/8 |
| Maximum Voltage (kV) | : | 35 |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Inspection Window | : | Yes |
| Copper Conductor Size | : | 6 AWG |
