Cu,CompLug,2H,#8A,1/4S,ST,PK50
MFG #LCC8-14ABW-L
$11.12 / E
EACH
EACH
Product Description:

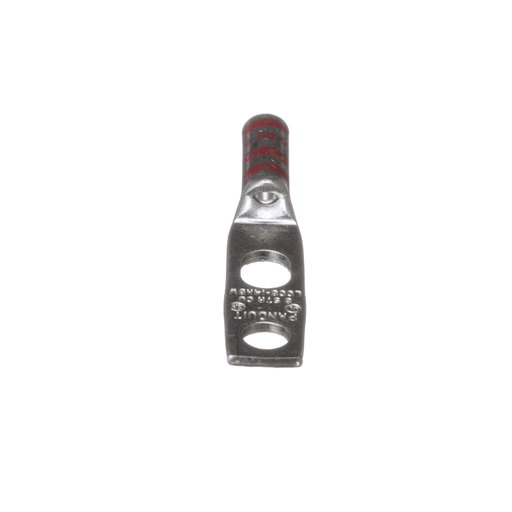

Two-hole, long barrel lug with window, #8 AWG wire, 1/4 stud hole (one slotted), .63 — .75 hole spacing.
HESCO Part Number
PANLCC814ABWL
UPC
074983345076
Manufacturer Part Number
LCC8-14ABW-L
Manufacturer
Panduit
Cu,CompLug,2H,#8A,1/4S,ST,PK50
MFG #LCC8-14ABW-L
Product Description:
Two-hole, long barrel lug with window, #8 AWG wire, 1/4 stud hole (one slotted), .63 — .75 hole spacing.
HESCO Part Number
PANLCC814ABWL
UPC
074983345076
Manufacturer Part Number
LCC8-14ABW-L
Manufacturer
Panduit
$11.12 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 56.6 |
| Sub Brand | : | Pan-Lug™ |
| Product Type | : | Compression Lug |
| Color Code | : | Red |
| Panduit Die Index Number | : | P21 |
| Tongue Width (mm) | : | 12.2 |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Size (In.) | : | 1/4 |
| Barrel Length (In.) | : | 0.7 |
| Base Material | : | Copper |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Thickness (In.) | : | 0.07 |
| Burndy Die Index Number | : | 49 |
| Stud Hole Spacing (In.) | : | 3/4 |
| Stud Hole Spacing (mm) | : | 19.1 |
| Overall Length (In.) | : | 2.23 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Maximum Voltage (kV) | : | 35 |
| UL Temperature Rating (°C) | : | 90 |
| Barrel Length (mm) | : | 17.8 |
| Wire Strip Length (mm) | : | 19.1 |
| Tongue Type | : | Standard |
| Wire Strip Length (In.) | : | 3/4 |
| Barrel Type | : | Long |
| Tongue Width (In.) | : | 0.48 |
| Tongue Thickness (mm) | : | 1.8 |
| Tongue Angle | : | Straight |
| T & B Die Index Number | : | 21 |
| Stud Hole Size (mm) | : | 6.4 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Copper Conductor Size | : | 8 AWG |
Packaging Details | ||
| UPC | : | 07498334507 |
| GTIN Package | : | 00074983345076 |
| Standard Package Volume Ft3 | : | 0.0305 |
| Standard Package Weight Pounds | : | 0.9500 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983345076 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
