CuLugFLB,2Hole,#1AWG,1/4Stud,1PKG10
MFG #LCCX1-14D-X
$18.71 / E
EACH
EACH
Product Description:

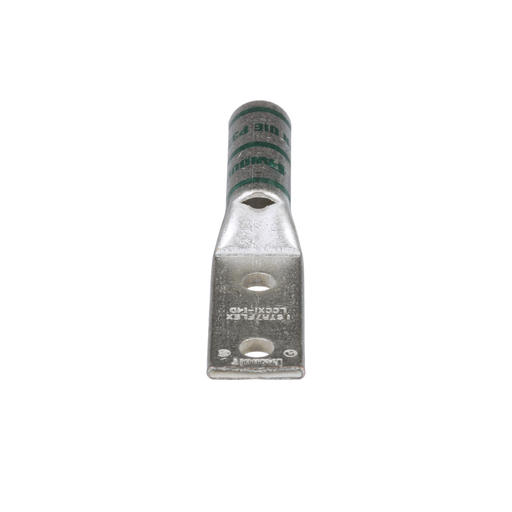

Two-hole, flex lug, long barrel, #1 AWG wire, 1/4 stud hole, 1 hole spacing.
HESCO Part Number
PANLCCX114DX
UPC
074983425655
Manufacturer Part Number
LCCX1-14D-X
Manufacturer
Panduit
CuLugFLB,2Hole,#1AWG,1/4Stud,1PKG10
MFG #LCCX1-14D-X
Product Description:
Two-hole, flex lug, long barrel, #1 AWG wire, 1/4 stud hole, 1 hole spacing.
HESCO Part Number
PANLCCX114DX
UPC
074983425655
Manufacturer Part Number
LCCX1-14D-X
Manufacturer
Panduit
$18.71 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Stud Hole Spacing (mm) | : | 25.4 |
| Stud Hole Spacing (In.) | : | 1 |
| Wire Strip Length (In.) | : | 1-1/2 |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (In.) | : | 3.44 |
| Overall Length (mm) | : | 87.4 |
| Stud Hole Size (In.) | : | 1/4 |
| Tongue Angle | : | Straight |
| Color Code | : | Green |
| Wire Strip Length (mm) | : | 38.1 |
| Barrel Type | : | Long |
| Tongue Width (mm) | : | 19.3 |
| CSA Temperature Rating (°C) | : | 90 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| T & B Die Index Number | : | 37 |
| Stud Hole Size (mm) | : | 6.4 |
| Barrel Length (In.) | : | 1.44 |
| Tongue Thickness (In.) | : | 0.12 |
| Product Type | : | Compression Lug |
| Barrel Length (mm) | : | 36.6 |
| Tongue Type | : | Standard |
| Tongue Thickness (mm) | : | 3 |
| Base Material | : | Copper |
| Burndy Die Index Number | : | 11 |
| UL Temperature Rating (°C) | : | 90 |
| Panduit Die Index Number | : | P37 |
| Finish/Coating | : | Tin-Plated |
| Tongue Width (In.) | : | 0.76 |
| Maximum Voltage (kV) | : | 35 |
| Number of Stud Holes | : | 2 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Class I Copper Flex Conductor Size | : | 1 AWG |
| Class M Copper Flex Conductor Size | : | 1 AWG |
| Class H Copper Flex Conductor Size | : | 1 AWG |
| Copper Conductor Size | : | 1 AWG |
| Class K Copper Flex Conductor Size | : | 1 AWG |
| DLO Copper Flex Conductor Size | : | 1 AWG |
| Class G Copper Flex Conductor Size | : | 1 AWG |
Packaging Details | ||
| UPC | : | 07498342565 |
| GTIN Package | : | 00074983425655 |
| Standard Package Volume Ft3 | : | 0.0312 |
| Standard Package Weight Pounds | : | 1.0500 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 4.8 |
| Std Package Length MM | : | 121.92 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983425655 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Stud Hole Spacing (mm) : 25.4 Stud Hole Spacing (In.) : 1 Wire Strip Length (In.) : 1-1/2 Sub Brand : Pan-Lug™ Overall Length (In.) : 3.44 Overall Length (mm) : 87.4 Stud Hole Size (In.) : 1/4 Tongue Angle : Straight Color Code : Green Wire Strip Length (mm) : 38.1 Barrel Type : Long Tongue Width (mm) : 19.3 CSA Temperature Rating (°C) : 90 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V T & B Die Index Number : 37 Stud Hole Size (mm) : 6.4 Barrel Length (In.) : 1.44 Tongue Thickness (In.) : 0.12 Product Type : Compression Lug Barrel Length (mm) : 36.6 Tongue Type : Standard Tongue Thickness (mm) : 3 Base Material : Copper Burndy Die Index Number : 11 UL Temperature Rating (°C) : 90 Panduit Die Index Number : P37 Finish/Coating : Tin-Plated Tongue Width (In.) : 0.76 Maximum Voltage (kV) : 35 Number of Stud Holes : 2 Barrel Entry : Beveled Inspection Window : Yes Class I Copper Flex Conductor Size : 1 AWG Class M Copper Flex Conductor Size : 1 AWG Class H Copper Flex Conductor Size : 1 AWG Copper Conductor Size : 1 AWG Class K Copper Flex Conductor Size : 1 AWG DLO Copper Flex Conductor Size : 1 AWG Class G Copper Flex Conductor Size : 1 AWG Packaging Details
UPC : 07498342565 GTIN Package : 00074983425655 Standard Package Volume Ft3 : 0.0312 Standard Package Weight Pounds : 1.0500 Std Package Height In : 3.3 Std Package Height MM : 83.82 Std Package Length In : 4.8 Std Package Length MM : 121.92 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983425655 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 10.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation Documents
