Pan-Lug™ LCCX450-12-6 Comp. Lug, Tin Plt Copper, Strt, Two 1/2" Stud, PK6
MFG #LCCX450-12-6
$82.87 / E
EACH
EACH
Product Description:

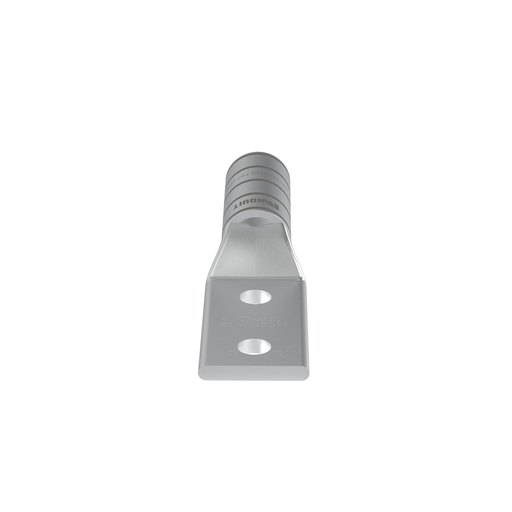

The LCCX450-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCCX450126
UPC
074983198207
Manufacturer Part Number
LCCX450-12-6
Manufacturer
Panduit
Pan-Lug™ LCCX450-12-6 Comp. Lug, Tin Plt Copper, Strt, Two 1/2" Stud, PK6
MFG #LCCX450-12-6
Product Description:
The LCCX450-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCCX450126
UPC
074983198207
Manufacturer Part Number
LCCX450-12-6
Manufacturer
Panduit
$82.87 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Thickness (mm) | : | 6.6 |
| Wire Strip Length (mm) | : | 69.9 |
| Wire Strip Length (In.) | : | 2-3/4 |
| Stud Hole Spacing (In.) | : | 1.75 |
| Base Material | : | Copper |
| Tongue Type | : | Standard |
| Barrel Type | : | Long |
| Tongue Width (In.) | : | 1.7 |
| Color Code | : | Brown |
| Tongue Angle | : | Straight |
| Stud Hole Spacing (mm) | : | 44.5 |
| Tongue Thickness (In.) | : | 0.26 |
| Overall Length (mm) | : | 161.8 |
| Overall Length (In.) | : | 6.37 |
| T & B Die Index Number | : | 87 |
| Stud Hole Size (mm) | : | 12.7 |
| Barrel Length (mm) | : | 68.3 |
| Panduit Die Index Number | : | P87 |
| Product Type | : | Compression Lug |
| Burndy Die Index Number | : | 20 |
| Stud Hole Size (In.) | : | 1/2 |
| Sub Brand | : | Pan-Lug™ |
| Maximum Voltage (kV) | : | 35 |
| UL Temperature Rating (°C) | : | 90 |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Width (mm) | : | 43.2 |
| Barrel Length (In.) | : | 2.69 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Finish/Coating | : | Tin-Plated |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Class H Copper Flex Conductor Size | : | 450 kcmil |
| Class I Copper Flex Conductor Size | : | 450 kcmil |
| Class M Copper Flex Conductor Size | : | 450 kcmil |
| DLO Copper Flex Conductor Size | : | 450 kcmil |
| Class K Copper Flex Conductor Size | : | 450 kcmil |
| Class G Copper Flex Conductor Size | : | 450 kcmil |
Packaging Details | ||
| UPC | : | 07498319820 |
| GTIN Package | : | 00074983198207 |
| Standard Package Volume Ft3 | : | 0.0500 |
| Standard Package Weight Pounds | : | 5.4000 |
| Std Package Height In | : | 3.5 |
| Std Package Height MM | : | 88.9 |
| Std Package Length In | : | 7.9 |
| Std Package Length MM | : | 200.66 |
| Std Package Width In | : | 3.45 |
| Std Package Width MM | : | 87.63 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983198207 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
