Pan-Lug™ LCCX500-12-6 Comp Lug, 500 kcmil, Flex, Tin Plt Copper, Two 1/2" Stud
MFG #LCCX500-12-6
$90.97 / E
EACH
EACH
Product Description:

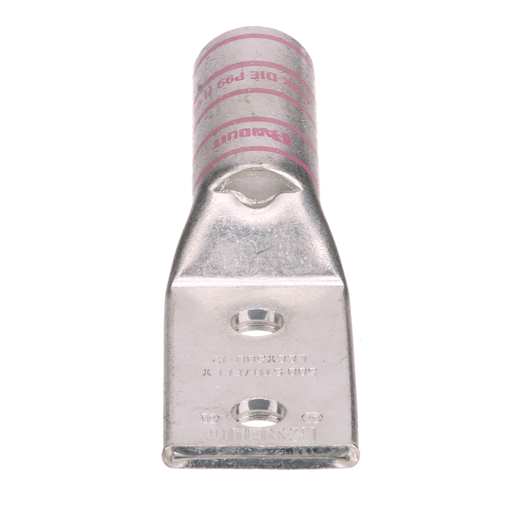

The LCCX500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCCX500126
UPC
074983437931
Manufacturer Part Number
LCCX500-12-6
Manufacturer
Panduit
Pan-Lug™ LCCX500-12-6 Comp Lug, 500 kcmil, Flex, Tin Plt Copper, Two 1/2" Stud
MFG #LCCX500-12-6
Product Description:
The LCCX500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
HESCO Part Number
PANLCCX500126
UPC
074983437931
Manufacturer Part Number
LCCX500-12-6
Manufacturer
Panduit
$90.97 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| T & B Die Index Number | : | 99H |
| Product Type | : | Compression Lug |
| Burndy Die Index Number | : | L99 |
| Tongue Angle | : | Straight |
| Barrel Length (In.) | : | 2.88 |
| Barrel Type | : | Long |
| Tongue Width (mm) | : | 48 |
| Panduit Die Index Number | : | P99 |
| Tongue Type | : | Standard |
| UL Temperature Rating (°C) | : | 90 |
| Base Material | : | Copper |
| Stud Hole Spacing (In.) | : | 1.75 |
| Tongue Thickness (mm) | : | 6.6 |
| Stud Hole Spacing (mm) | : | 44.5 |
| CSA Temperature Rating (°C) | : | 90 |
| Wire Strip Length (mm) | : | 74.6 |
| Wire Strip Length (In.) | : | 2-15/16 |
| Color Code | : | Pink |
| Sub Brand | : | Pan-Lug™ |
| Tongue Width (In.) | : | 1.89 |
| Barrel Length (mm) | : | 73.2 |
| Overall Length (mm) | : | 169.2 |
| Tongue Thickness (In.) | : | 0.26 |
| Maximum Voltage (kV) | : | 35 |
| Finish/Coating | : | Tin-Plated |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Size (mm) | : | 12.7 |
| Stud Hole Size (In.) | : | 1/2 |
| Overall Length (In.) | : | 6.66 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 2 |
| Class I Copper Flex Conductor Size | : | 500 kcmil |
| Class M Copper Flex Conductor Size | : | 500 kcmil |
| Class H Copper Flex Conductor Size | : | 500 kcmil |
| DLO Copper Flex Conductor Size | : | 500 kcmil |
| Class G Copper Flex Conductor Size | : | 500 kcmil |
| Class K Copper Flex Conductor Size | : | 500 kcmil |
Packaging Details | ||
| UPC | : | 07498343793 |
| GTIN Package | : | 00074983437931 |
| Standard Package Volume Ft3 | : | 0.0693 |
| Standard Package Weight Pounds | : | 6.2292 |
| Std Package Height In | : | 4.4 |
| Std Package Height MM | : | 111.76 |
| Std Package Length In | : | 10.9 |
| Std Package Length MM | : | 276.86 |
| Std Package Width In | : | 4.35 |
| Std Package Width MM | : | 110.49 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983437931 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 2,160 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 2,242.5120 |
| RoHS Compliant | : | Compliant |
