CuLugSBW,2Hole,#1AWG,1/2Stud,1.75PKG20
MFG #LCD1-12-E
$14.96 / E
EACH
EACH
Product Description:

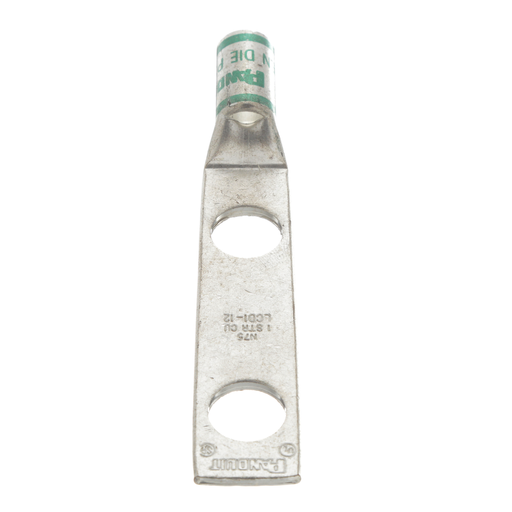

Two-hole, standard barrel lug with window, #1 AWG wire, 1/2 stud hole, 1 .75 hole spacing.
HESCO Part Number
PANLCD112E
UPC
074983382927
Manufacturer Part Number
LCD1-12-E
Manufacturer
Panduit
CuLugSBW,2Hole,#1AWG,1/2Stud,1.75PKG20
MFG #LCD1-12-E
Product Description:
Two-hole, standard barrel lug with window, #1 AWG wire, 1/2 stud hole, 1 .75 hole spacing.
HESCO Part Number
PANLCD112E
UPC
074983382927
Manufacturer Part Number
LCD1-12-E
Manufacturer
Panduit
$14.96 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Packaging Details
| UPC | : | 07498338292 |
| GTIN Package | : | 00074983382927 |
| Standard Package Volume Ft3 | : | 0.0377 |
| Standard Package Weight Pounds | : | 1.7500 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 5.8 |
| Std Package Length MM | : | 147.32 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 20 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983382927 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 20.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 105.7 |
| Overall Length (In.) | : | 4.16 |
| Sub Brand | : | Pan-Lug™ |
| CSA Temperature Rating (°C) | : | 90 |
| Maximum Voltage (kV) | : | 35 |
| Barrel Length (In.) | : | 0.88 |
| Tongue Thickness (mm) | : | 2.3 |
| Product Type | : | Compression Lug |
| Stud Hole Size (mm) | : | 12.7 |
| Tongue Type | : | Standard |
| Wire Strip Length (mm) | : | 23.8 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Spacing (In.) | : | 1.75 |
| Stud Hole Size (In.) | : | 1/2 |
| T & B Die Index Number | : | 37 |
| Panduit Die Index Number | : | P37 |
| Wire Strip Length (In.) | : | 15/16 |
| Burndy Die Index Number | : | 11 |
| UL Temperature Rating (°C) | : | 90 |
| Barrel Type | : | Standard |
| Tongue Thickness (In.) | : | 0.09 |
| Barrel Length (mm) | : | 22.4 |
| Color Code | : | Green |
| Tongue Width (mm) | : | 19.1 |
| Tongue Width (In.) | : | 0.75 |
| Base Material | : | Copper |
| Tongue Angle | : | Straight |
| Stud Hole Spacing (mm) | : | 44.5 |
| Finish/Coating | : | Tin-Plated |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 2 |
| Copper Conductor Size | : | 1 AWG |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Packaging Details
UPC : 07498338292 GTIN Package : 00074983382927 Standard Package Volume Ft3 : 0.0377 Standard Package Weight Pounds : 1.7500 Std Package Height In : 3.3 Std Package Height MM : 83.82 Std Package Length In : 5.8 Std Package Length MM : 147.32 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 20 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983382927 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 20.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Overall Length (mm) : 105.7 Overall Length (In.) : 4.16 Sub Brand : Pan-Lug™ CSA Temperature Rating (°C) : 90 Maximum Voltage (kV) : 35 Barrel Length (In.) : 0.88 Tongue Thickness (mm) : 2.3 Product Type : Compression Lug Stud Hole Size (mm) : 12.7 Tongue Type : Standard Wire Strip Length (mm) : 23.8 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Stud Hole Spacing (In.) : 1.75 Stud Hole Size (In.) : 1/2 T & B Die Index Number : 37 Panduit Die Index Number : P37 Wire Strip Length (In.) : 15/16 Burndy Die Index Number : 11 UL Temperature Rating (°C) : 90 Barrel Type : Standard Tongue Thickness (In.) : 0.09 Barrel Length (mm) : 22.4 Color Code : Green Tongue Width (mm) : 19.1 Tongue Width (In.) : 0.75 Base Material : Copper Tongue Angle : Straight Stud Hole Spacing (mm) : 44.5 Finish/Coating : Tin-Plated Barrel Entry : Beveled Inspection Window : Yes Number of Stud Holes : 2 Copper Conductor Size : 1 AWG - Part Drawings
Part Drawings 1
Installation DocumentsInstallation Documents 1
