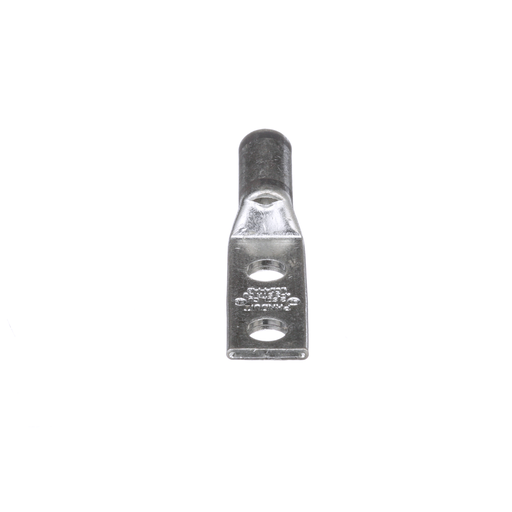

Pan-Lug™ LCD4-14B-L Copper Compression Connectors - Lugs
MFG #LCD4-14B-L
$11.23 / E
EACH
EACH
Product Description:
Two-hole, standard barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .75 hole spacing.
HESCO Part Number
PANLCD414BL
UPC
074983383054
Manufacturer Part Number
LCD4-14B-L
Manufacturer
Panduit
Pan-Lug™ LCD4-14B-L Copper Compression Connectors - Lugs
MFG #LCD4-14B-L
Product Description:
Two-hole, standard barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .75 hole spacing.
HESCO Part Number
PANLCD414BL
UPC
074983383054
Manufacturer Part Number
LCD4-14B-L
Manufacturer
Panduit
$11.23 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Packaging Details
| UPC | : | 07498338305 |
| GTIN Package | : | 00074983383054 |
| Standard Package Volume Ft3 | : | 0.0312 |
| Standard Package Weight Pounds | : | 1.8000 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.7 |
| Std Package Length MM | : | 119.38 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983383054 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Angle | : | Straight |
| Burndy Die Index Number | : | 8 |
| Wire Strip Length (mm) | : | 22.2 |
| Tongue Width (In.) | : | 0.55 |
| Tongue Type | : | Standard |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 14 |
| Barrel Length (mm) | : | 20.6 |
| Finish/Coating | : | Tin-Plated |
| Overall Length (mm) | : | 60.5 |
| Tongue Thickness (In.) | : | 0.09 |
| Sub Brand | : | Pan-Lug™ |
| Panduit Die Index Number | : | P29 |
| CSA Temperature Rating (°C) | : | 90 |
| Stud Hole Spacing (mm) | : | 19.1 |
| Stud Hole Spacing (In.) | : | 3/4 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Wire Strip Length (In.) | : | 7/8 |
| Stud Hole Size (mm) | : | 6.4 |
| Product Type | : | Compression Lug |
| Maximum Voltage (kV) | : | 35 |
| T & B Die Index Number | : | 29 |
| Barrel Type | : | Standard |
| Barrel Length (In.) | : | 0.81 |
| Overall Length (In.) | : | 2.38 |
| UL Temperature Rating (°C) | : | 90 |
| Stud Hole Size (In.) | : | 1/4 |
| Color Code | : | Gray |
| Tongue Thickness (mm) | : | 2.3 |
| Number of Stud Holes | : | 2 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Copper Conductor Size | : | 4 AWG |
