Pan-Lug™ LCD6-56D-L Copper Compression Connectors - Lugs
MFG #LCD6-56D-L
$10.67 / E
EACH
EACH
Product Description:

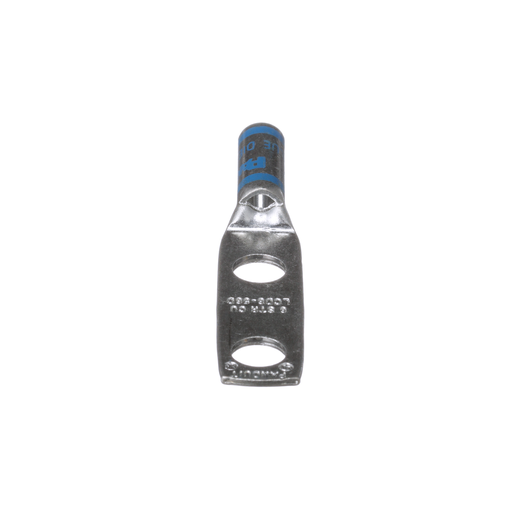

Two-hole, standard barrel lug with window, #6 AWG wire, 5/16 stud hole, 1 hole spacing.
HESCO Part Number
PANLCD656DL
UPC
074983383146
Manufacturer Part Number
LCD6-56D-L
Manufacturer
Panduit
Pan-Lug™ LCD6-56D-L Copper Compression Connectors - Lugs
MFG #LCD6-56D-L
Product Description:
Two-hole, standard barrel lug with window, #6 AWG wire, 5/16 stud hole, 1 hole spacing.
HESCO Part Number
PANLCD656DL
UPC
074983383146
Manufacturer Part Number
LCD6-56D-L
Manufacturer
Panduit
$10.67 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Length (In.) | : | 0.81 |
| Tongue Width (mm) | : | 14.3 |
| Panduit Die Index Number | : | P24 |
| Wire Strip Length (In.) | : | 7/8 |
| Wire Strip Length (mm) | : | 22.2 |
| Base Material | : | Copper |
| Color Code | : | Blue |
| Maximum Voltage (kV) | : | 35 |
| T & B Die Index Number | : | 24 |
| Product Type | : | Compression Lug |
| Tongue Type | : | Standard |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Burndy Die Index Number | : | 7 |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Spacing (mm) | : | 25.4 |
| Tongue Thickness (In.) | : | 0.07 |
| Stud Hole Spacing (In.) | : | 1 |
| Barrel Type | : | Standard |
| CSA Temperature Rating (°C) | : | 90 |
| Overall Length (In.) | : | 2.73 |
| Tongue Angle | : | Straight |
| Tongue Width (In.) | : | 0.56 |
| Stud Hole Size (mm) | : | 7.9 |
| Stud Hole Size (In.) | : | 5/16 |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (mm) | : | 69.4 |
| Tongue Thickness (mm) | : | 1.8 |
| UL Temperature Rating (°C) | : | 90 |
| Barrel Length (mm) | : | 20.6 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Copper Conductor Size | : | 6 AWG |
