STDFlxLug,4/0AWG,.5in,1.8in,90°,WDW,P10
MFG #LCDX4/0-12F-X
$42.16 / E
EACH
EACH
Product Description:

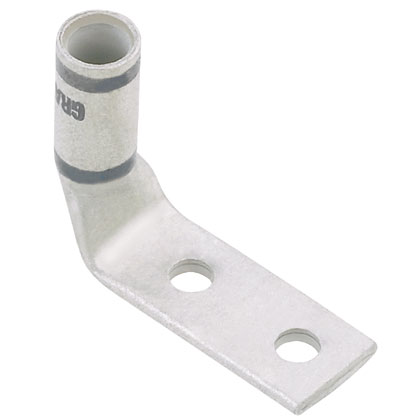

Two-hole, flex lug, 4/0 AWG wire, 1/2 stud hole, 1.75 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCDX4012FX
UPC
074983428090
Manufacturer Part Number
LCDX4/0-12F-X
Manufacturer
Panduit
STDFlxLug,4/0AWG,.5in,1.8in,90°,WDW,P10
MFG #LCDX4/0-12F-X
Product Description:
Two-hole, flex lug, 4/0 AWG wire, 1/2 stud hole, 1.75 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCDX4012FX
UPC
074983428090
Manufacturer Part Number
LCDX4/0-12F-X
Manufacturer
Panduit
$42.16 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Voltage (kV) | : | 35 |
| Finish/Coating | : | Tin-Plated |
| Tongue Thickness (mm) | : | 4.1 |
| Barrel Type | : | Standard |
| Tongue Width (mm) | : | 30.2 |
| Overall Length (In.) | : | 4.06 |
| CSA Temperature Rating (°C) | : | 90 |
| Burndy Die Index Number | : | 15 |
| Product Type | : | Compression Lug |
| Tongue Type | : | Standard |
| Sub Brand | : | Pan-Lug™ |
| UL Temperature Rating (°C) | : | 90 |
| Tongue Angle | : | 90° |
| Base Material | : | Copper |
| Color Code | : | Purple |
| Tongue Thickness (In.) | : | 0.16 |
| Barrel Length (In.) | : | 1.03 |
| T & B Die Index Number | : | 54 |
| Stud Hole Size (In.) | : | 1/2 |
| Tongue Width (In.) | : | 1.19 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Stud Hole Spacing (In.) | : | 1.75 |
| Panduit Die Index Number | : | P54 |
| Stud Hole Size (mm) | : | 12.7 |
| Overall Length (mm) | : | 103.1 |
| Stud Hole Spacing (mm) | : | 44.5 |
| Wire Strip Length (mm) | : | 26.9 |
| Barrel Length (mm) | : | 26.2 |
| Wire Strip Length (In.) | : | 1-1/16 |
| Barrel Entry | : | Beveled |
| Inspection Window | : | Yes |
| Number of Stud Holes | : | 2 |
| Class K Copper Flex Conductor Size | : | 4/0 AWG |
| Class G Copper Flex Conductor Size | : | 4/0 AWG |
| Class M Copper Flex Conductor Size | : | 4/0 AWG |
| Class I Copper Flex Conductor Size | : | 4/0 AWG |
| DLO Copper Flex Conductor Size | : | 4/0 AWG |
| Copper Conductor Size | : | 4/0 AWG |
| Class H Copper Flex Conductor Size | : | 4/0 AWG |
Packaging Details | ||
| UPC | : | 07498342809 |
| GTIN Package | : | 00074983428090 |
| Standard Package Volume Ft3 | : | 0.0485 |
| Standard Package Weight Pounds | : | 3.0000 |
| Std Package Height In | : | 3.2 |
| Std Package Height MM | : | 81.28 |
| Std Package Length In | : | 7.7 |
| Std Package Length MM | : | 195.58 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983428090 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Maximum Voltage (kV) : 35 Finish/Coating : Tin-Plated Tongue Thickness (mm) : 4.1 Barrel Type : Standard Tongue Width (mm) : 30.2 Overall Length (In.) : 4.06 CSA Temperature Rating (°C) : 90 Burndy Die Index Number : 15 Product Type : Compression Lug Tongue Type : Standard Sub Brand : Pan-Lug™ UL Temperature Rating (°C) : 90 Tongue Angle : 90° Base Material : Copper Color Code : Purple Tongue Thickness (In.) : 0.16 Barrel Length (In.) : 1.03 T & B Die Index Number : 54 Stud Hole Size (In.) : 1/2 Tongue Width (In.) : 1.19 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Stud Hole Spacing (In.) : 1.75 Panduit Die Index Number : P54 Stud Hole Size (mm) : 12.7 Overall Length (mm) : 103.1 Stud Hole Spacing (mm) : 44.5 Wire Strip Length (mm) : 26.9 Barrel Length (mm) : 26.2 Wire Strip Length (In.) : 1-1/16 Barrel Entry : Beveled Inspection Window : Yes Number of Stud Holes : 2 Class K Copper Flex Conductor Size : 4/0 AWG Class G Copper Flex Conductor Size : 4/0 AWG Class M Copper Flex Conductor Size : 4/0 AWG Class I Copper Flex Conductor Size : 4/0 AWG DLO Copper Flex Conductor Size : 4/0 AWG Copper Conductor Size : 4/0 AWG Class H Copper Flex Conductor Size : 4/0 AWG Packaging Details
UPC : 07498342809 GTIN Package : 00074983428090 Standard Package Volume Ft3 : 0.0485 Standard Package Weight Pounds : 3.0000 Std Package Height In : 3.2 Std Package Height MM : 81.28 Std Package Length In : 7.7 Std Package Length MM : 195.58 Std Package Width In : 3.4 Std Package Width MM : 86.36 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983428090 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 10.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation Documents
Installation Documents 1
Part DrawingsPart Drawings 1
